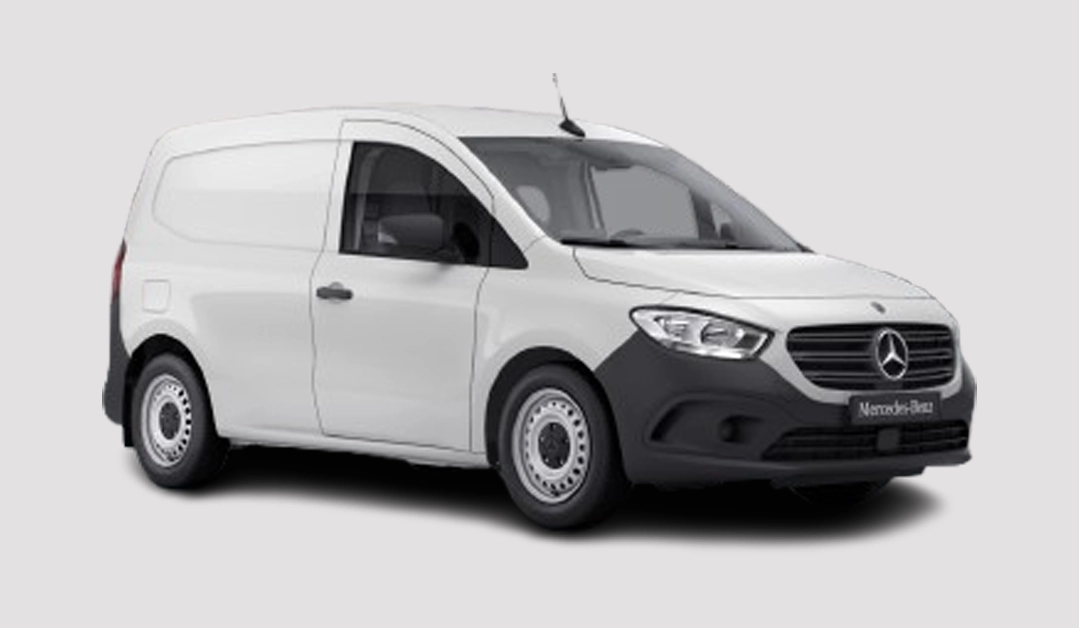

The Mercedes-Benz Citan is a small van that is available in two body styles – L1 and L2 – as well as in five-seat Crew Van configuration.
The Citan is available with the choice of two 1.5-litre CDi turbodiesel engines – generating either 95Ps (110) or 116PS (112) – or as the electric eCitan, which has 45kWh battery.
Three trim levels are available - BASE, PRO and SELECT - while the Crew Van is available with either a 116PS engine or 45kWh battery
The Mercedes-Benz Citan has double-wing rear doors that open to 180-degrees, while L1 models have one sliding door on kerbside and L2 models have sliding doors on each side of the van.
The Mercedes-Benz Citan is one of the more compact models in the small van class and this is reflected in its cargo capacity being smaller than others in the sector at just under three cubic metres. This extends to 3.6 cubic metres in L2 guise, which is more competitive versus other models in the segment.
The Crew Van, which is available only in L2 configuration, offers the option of three rear seats to increase the number of passenger seats to five. The seats can be removed and a bulkhead added to give the Crew Van the versatility of a panel van, increasing the load volume to 3.3 cubic metres.
| MERCEDES-BENZ CITAN DIMENSIONS | L1 | L2 | Crew Van |
| Exterior Length (mm) | 4498 | 4922 | 4922 |
| Exterior Height (mm) | 1910 | 1916 | 1918 |
| Exterior width inc. door mirrors (mm) | 2159 | 2159 | 2159 |
| Wheelbase (mm) | 2716 | 3100 | 3100 |
| Maximum Width of Side Sliding Door (mm) | 451 | 647 | 831 |
| Maximum Width of Rear Opening (mm) | 1248 | 1248 | 1248 |
| Maximum Load Height of Rear Opening (mm) | 1123 | 1123 | 1123 |
| Maximum Load Length at Floor (mm) | 1806 | 2170 | 1390 |
| Maximum Load Height (mm) | 1256 | 1256 | 1256 |
| Maximum Load Width (mm) | 1524 | 1524 | 1524 |
| Width Between Wheelarches (mm) | 1260 | 1260 | 1260 |
| Maximum Load Volume (cu m) | 2.9 | 3.6 | 3.3* |
*Rear seats removed
The payload of the Mercedes-Benz Citan varies according to whether you specify an L1, L2 or Crew Van version and differs depending on which engine/powertrain is chosen.
The payload range spans from 428kg (for the eCitan 45kWh L1 model) and increases to a maximum payload of 789kg, which is available on the turbodiesel 1.5CDi 112 Crew Van in L2 configuration.
The Mercedes-Benz Citan has one of the most competitive braked towing capacities in its category with the potential to tow 1500kg using the diesel engines.
The electric eCitan, meanwhile, has a braked towing capacity of up to 1450kg.
| MERCEDES-BENZ CITAN LOADS & WEIGHTS | 1.5CDi 110 L1 | 1.5CDi 110 L2 | 1.5CDi 112 Crew Van | 45kWh L1 | 45kWh L2 | 45kWh Crew Van |
| Payload Capacity (kg) | 486-664 | 661-688 | 765-789 | 428-448 | 593-616 | 634 |
| Gross Vehicle Weight (kg) | 2021-2250 | 2324-2359 | 2550 | 2230 | 2490 | 2580 |
| Kerbweight (kg) | 1535-1606 | 1661-1686 | 1761-1785 | 1782-1802 | 1874-1897 | 1946 |
| Max. Braked Towing Weight (kg) | 1500 | 1500 | 1500 | 1450 | 1450 | 1450 |
| Mercedes-Benz Citan 1.5CDi 110 PRO L1 | Ford Transit Connect 2.0 EcoBlue 122 Limited SWB | Vauxhall Combo 1.5TDi 130 Pro STD | Nissan Townstar 1.3TCe Tekna L1 [Petrol] | Citroen Berlingo 1.5HDi 130 M Enterprise | |
| Exterior Length (mm) | 4498 | 4500 | 4403 | 4486 | 4403 |
| Exterior Height (mm) | 1910 | 1856 | 1796 | 1864 | 1796 |
| Wheelbase (mm) | 2716 | 2755 | 2785 | 2716 | 2785 |
| Maximum Width of Side Sliding Door (mm) | 451 | 703 | 675 | 615 | 675 |
| Maximum Load Length at Floor (mm) | 1806 | 1797 | 1817 | 1810 | 1817 |
| Maximum Load Height (mm) | 1256 | 1272 | 1200 | 1215 | 1200 |
| Maximum Load Width (mm) | 1524 | 1628 | 1630 | 1570 | 1630 |
| Width Between Wheelarches (mm) | 1260 | 1230 | 1229 | 1248 | 1229 |
| Maximum Load Volume (cu m) | 2.9 | 3.1 | 3.3 | 3.3 | 3.3 |
| Payload Capacity (kg) | 644 | 722 | 982 | 724 | 984 |
| Gross Vehicle Weight (kg) | 2250 | 2250 | 2400 | 2180 | 2385 |
| Max. Braked Towing Weight (kg) | 1500 | 1500 | 1000 | 1500 | 1000 |
