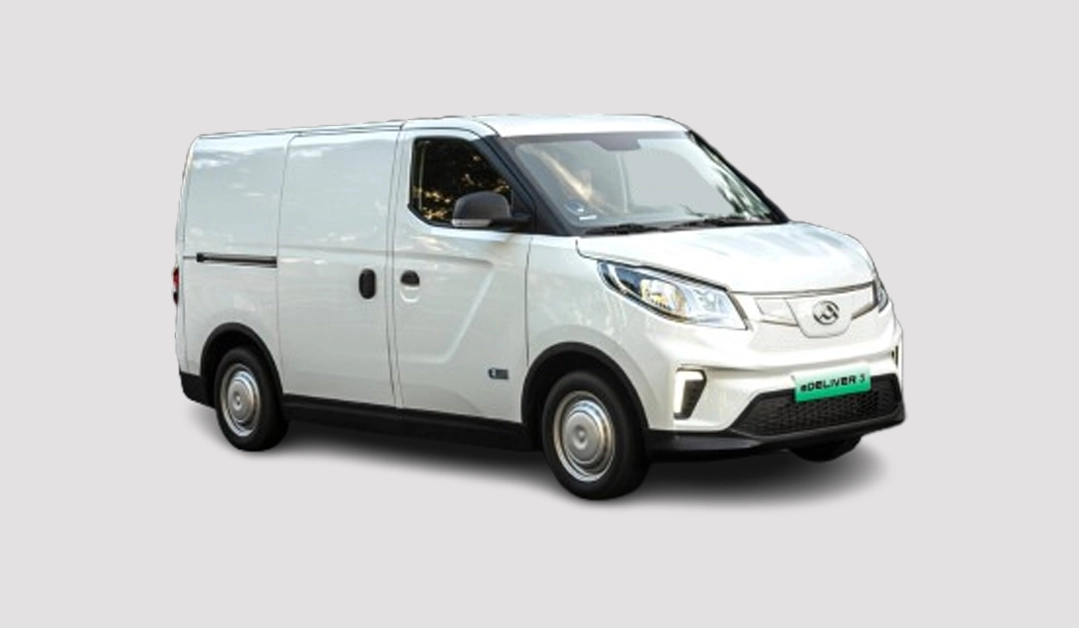

The electric Maxus eDeliver 3 is a Small Van that is available in a single L1/H1 body style as a panel van, though it can also be purchased in a Chassis Cab configuration too.
The dimensions of the Maxus eDeliver 3 are such that it differs from the majority of other models in the Small Van class by being slimmer but taller.
These unconventional dimensions are designed to make the Maxus more useable in urban environments by being manoeuvrable through slender city streets without exceeding the length of a standard small van.
Though it means the eDeliver 3 is larger in height that rival models, it opens up a more sizeable load bay with its 4.8 cubic metres establishing it as a class leader in terms of outright cargo capacity.
In terms of useable space, the eDeliver 3 has one of the longest load lengths at floor of 2180mm, while its maximum load height is 1330mm.
| MAXUS eDELIVER 3 DIMENSIONS | L1 H1 |
| Exterior Length (mm) | 4555 |
| Exterior Height (mm) | 1900 |
| Exterior Width excl. door mirrors (mm) | 1780 |
| Wheelbase (mm) | 2910 |
| Maximum Width of Side Sliding Door (mm) | 710 |
| Maximum Load Length at Floor (mm) | 2180 |
| Maximum Load Height (mm) | 1330 |
| Maximum Load Width (mm) | 1665 |
| Width Between Wheelarches (mm) | 1220 |
| Maximum Load Volume (cu m) | 4.8 |
The Maxus eDeliver 3’s payload capacity is 1045kg, which ranks it as the most generous within the small van category. with the 2.0-litre turbodiesel allowing for the most generous weight.
The Maxus eDeliver 3 offers 1030kg for braked towing capacity, which is among the best in the small van class.
| MAXUS eDELIVER 3 LOADS, TOWING & WEIGHTS | 50kWh Electric |
| Payload Capacity (kg) | 1045 |
| Gross Vehicle Weight (kg) | 2660 |
| Kerbweight (kg) | 1615 |
| Max. Braked Towing Weight (kg) | 1030 |
| REPRESENTATIVE TO RIVALS | Maxus eDeliver 3 50kWh Electric |
Nissan Townstar 45kWh Tekna L2 |
Peugeot E-Partner 52kWh Asphalt Long |
Mercedes-Benz Citan 45kWh PRO L2 |
| Exterior Length (mm) | 4555 | 4910 | 4753 | 4922 |
| Exterior Height (mm) | 1900 | 1854 | 1860 | 1912 |
| Wheelbase (mm) | 2910 | 3100 | 2975 | 3100 |
| Maximum Width of Side Sliding Door (mm) | 710 | 831 | 675 | 647 |
| Maximum Load Length at Floor (mm) | 2180 | 2230 | 2167 | 2170 |
| Maximum Load Height (mm) | 1330 | 1229 | 1270 | 1256 |
| Maximum Load Width (mm) | 1665 | 1570 | 1630 | 1524 |
| Width Between Wheelarches (mm) | 1220 | 1248 | 1229 | 1260 |
| Maximum Load Volume (cu m) | 4.8 | 4.3 | 3.9 | 3.6 |
| Payload Capacity (kg) | 1045 | 713 | 691 | 603 |
| Gross Vehicle Weight (kg) | 2660 | 2510 | 2450 | 2490 |
| Max. Braked Towing Weight (kg) | 1030 | 1500 | 750 | 1500 |
