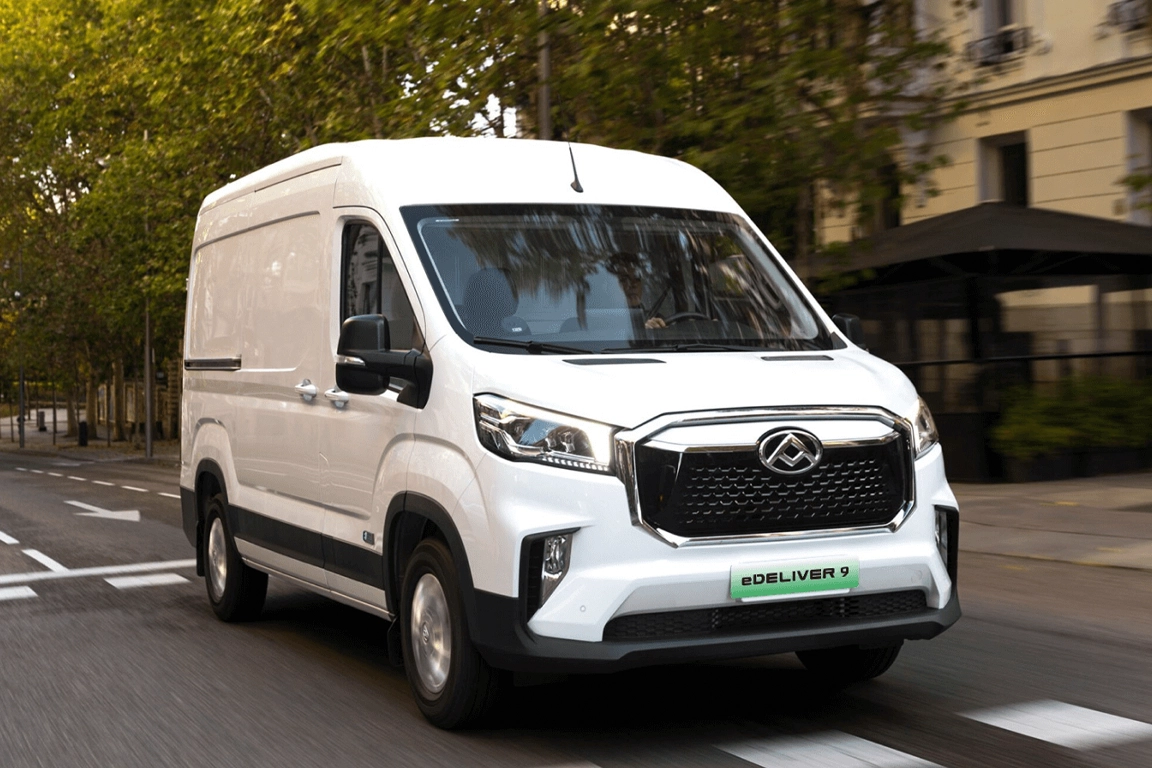

The Maxus Deliver 9 and electric Maxus eDeliver 9 is a Large Van available in three different body styles as a panel van, while it can also be purchased as a Chassis Cab for conversion.
The Maxus Deliver 9’s is offered in an L2/H2, L3/H2 and L3/H3 configuration to place it in the middle of the large van class in terms of body size.
The Maxus Deliver 9 can be had with the choice of two different lengths with L2 measuring 5546mm, while the largest L3 extends to 5940mm.
In terms of height, the entry-level H2 measures 2515mm, while the larger H3 is 2730mm by comparison.
Therefore, the L2/H2 (which is only available with an electric powertrain) offers up 9.7 cubic metres of load space, while the L3/H2 has 11.0 cubic metres and the largest L3/H3 measures 12.3 cubic metres.
This makes the Maxus Deliver 9 competitive with its main rivals in the large van space in terms of outright cargo room.
| MAXUS DELIVER 9 DIMENSIONS | L2 H2 | L3 H2 | L3 H3 |
| Exterior Length (mm) | 5546 | 5940 | 5940 |
| Exterior Height (mm) | 2515 | 2515 | 2730 |
| Exterior Width excl. door mirrors (mm) | 2062 | 2062 | 2062 |
| Wheelbase (mm) | 3366 | 3760 | 3760 |
| Maximum Width of Side Sliding Door (mm) | 1269 | 1269 | 1269 |
| Maximum Load Length at Floor (mm) | 3019 | 3413 | 3413 |
| Maximum Load Height (mm) | 1802 | 1802 | 2019 |
| Maximum Load Width (mm) | 1800 | 1800 | 1800 |
| Width Between Wheelarches (mm) | 1366 | 1366 | 1366 |
| Maximum Load Volume (cu m) | 9.7 | 11.0 | 12.3 |
The Maxus Deliver 9’s payload capacity is determined by whether you choose a diesel or electric powertrain, as well as whether you opt for a front-wheel drive or rear-wheel drive transmission.
The L2/H2 offers the most generous payload capacity of up to 1475kg when mated to an automatic transmission, but all models are capable of at least 1365kg.
In 2.0TDI FWD guise, the Deliver 9 offers between 1200 and 1215kg of payload, while the RWD version has 1110-1140kg available. In electric guise, the eDeliver 9 ranges from 850kg to 1530kg depending on whether it is FWD or RWD.
| MAXUS DELIVER 9 LOADS, TOWING & WEIGHTS | 2.0 TDI FWD |
2.0 TDI RWD |
77kWh Electric FWD |
88kWh Electric FWD |
88kWh Electric RWD |
100kWh Electric RWD |
| Payload Capacity (kg) | 1200–1215 | 1110–1140 | 920–1040 | 850–970 | 1470–1530 | 1430–1490 |
| Gross Vehicle Weight (kg) | 3500 | 3500 | 3500 | 3500 | 4250 | 4250 |
| Kerbweight (kg) | 2285–2300 | 2360–2390 | 2460–2580 | 2530–2650 | 2720–2780 | 2760–2820 |
| Max. Braked Towing Weight (kg) | 2800 | 2800 | 1500 | 1400–1500 | 2000 | 2000 |
| REPRESENTATIVE TO RIVALS | Maxus eDeliver 9 88kWh Electric FWD L3 H3 |
FIAT E-Ducato 110kWh Electric L3 H3 |
Ford E-Transit Trend 89kWh Electric 269PS L3 H3 |
| Exterior Length (mm) | 5940 | 5998 | 5981 |
| Exterior Height (mm) | 2730 | 2760 | 2650 |
| Wheelbase (mm) | 3760 | 4035 | 3750 |
| Maximum Width of Side Sliding Door (mm) | 1269 | 1250 | 1300 |
| Maximum Load Length at Floor (mm) | 3413 | 3705 | 3533 |
| Maximum Load Height (mm) | 2019 | 2172 | 2125 |
| Maximum Load Width (mm) | 1800 | 1870 | 1784 |
| Width Between Wheelarches (mm) | 1366 | 1422 | 1392 |
| Maximum Load Volume (cu m) | 12.3 | 15.0 | 12.0 |
| Payload Capacity (kg) | 850 | 1435 | 934 |
| Gross Vehicle Weight (kg) | 3500 | 4250 | 3500 |
| Max. Braked Towing Weight (kg) | 1400 | 2400 | 750 |
