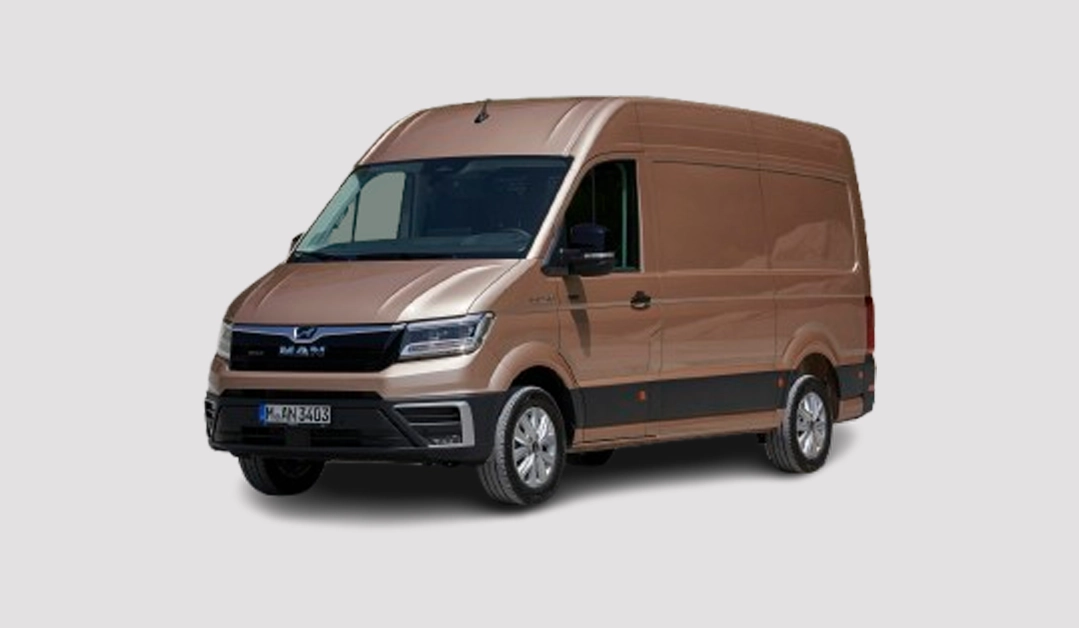

The MAN TGE is a Large Van available across six different body styles branded differently to the equivalent L2/H2 etc. designations.
As such, the MAN TGE is available in Standard Length/Normal Roof (L2/H2), Standard Length/High Roof (L2/H3), Long/High Roof (L3/H3), Long/Super High Roof L3/H4, Extra Long/High Roof (L4/H3) and Extra Long/Super High Roof (L4/H4).
The entry-level SL/NR (Standard/Normal) measures 5986mm in length and 2355mm in height. Long models measure 6836mm, while Extra Long models extend to 7391mm.
In terms of height, the MAN TGE with a Normal Roof is 2355mm, the High Roof is 2625mm and the Super High Roof measures 2798mm.

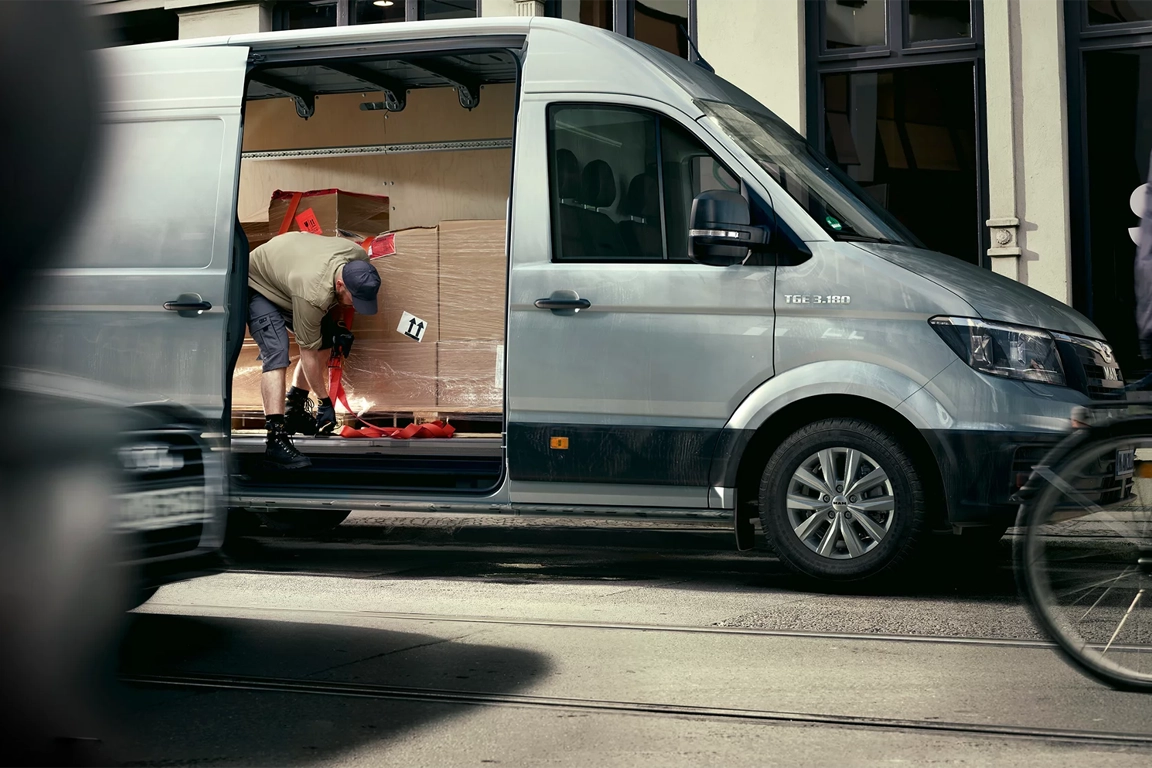

It means the MAN TGE can be configured across a wide spectrum of cargo sizes, beginning with 9.9 cubic metres in entry-level SL/NR, rising to 11.3 cubic metres in SL/HR, 14.4 cubic metres in LL/HR, 16.1 cubic metres in LL/SHR, 16.4 cubic metres in ELL/HR and 18.4 cubic metres in largest ELL/SHR.
This ensures the MAN TGE has one of the largest cargo areas of any model in the Large Van class.
| MAN TGE DIMENSIONS | Standard / Normal Roof | Standard / High Roof | Long / High Roof | Long / Super-high Roof | Extra Long / High Roof | Extra Long / Super High Roof |
| Exterior Length (mm) | 5986 | 5986 | 6836 | 6836 | 7391 | 7391 |
| Exterior Height (mm) | 2355 | 2625 | 2625 | 2798 | 2625 | 2798 |
| Exterior width incl. door mirrors (mm) | 2427 | 2427 | 2427 | 2427 | 2427 | 2427 |
| Wheelbase (mm) | 3640 | 3640 | 4490 | 4490 | 4490 | 4490 |
| Maximum Width of Side Sliding Door (mm) | 1311 | 1311 | 1311 | 1311 | 1311 | 1311 |
| Maximum Load Length at Floor (mm) | 2450 | 3450 | 4300 | 4300 | 4855 | 4855 |
| Maximum Load Height (mm) | 1726 | 1961 | 1961 | 2196 | 1961 | 2196 |
| Maximum Load Width (mm) | 1832 | 1832 | 1832 | 1832 | 1832 | 1832 |
| Width Between Wheelarches (mm) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Maximum Load Volume (cu m) | 9.9 | 11.3 | 14.4 | 16.1 | 16.4 | 18.4 |
The MAN TGE’s payload capacity is dependent on the body style and which gross vehicle weight is chosen for your particular model.
TGE’s with a 5000kg gross vehicle weight can haul up to 2984kg of payload, while 3500kg GVW TGE’s range between 926-1297kg for payload.
The MAN TGE offers at least a 3000kg braked towing capacity across its range, rising to 3500kg for the rear-wheel drive versions.
| MAN TGE LOADS, TOWING & WEIGHTS | 2.0 TDI 140 FWD | 2.0 TDI 163 FWD | 2.0 TDI 177 FWD | 2.0 TDI 163 AWD | 2.0 TDI 177 AWD | 2.0 TDI 163 RWD 350 | 2.0 TDI 163 RWD 500 |
| Payload Capacity (kg) | 1098-1297 | 1089-1288 | 1089-1288 | 926-1135 | 926-1135 | 1068-1215 | 2257-2984 |
| Gross Vehicle Weight (kg) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 5000 |
| Kerbweight (kg) | 2203-2402 | 2212-2411 | 2212-2411 | 2365-2574 | 2365-2574 | 2285-2743 | 2516-2743 |
| Max. Braked Towing Weight (kg) | 3000 | 3000 | 3000 | 3000 | 3000 | 3500 | 3500 |
| MAN TGE Dimensions, Payload & Towing | MAN TGE 2.0 TDI 163 FWD Standard / Normal Roof | Nissan Interstar 2.0dCi 150 Tekna L2 H2 | Mercedes-Benz Sprinter 2.0CDI 317 Select L2 H2 |
| Exterior Length (mm) | 5986 | 5780 | 5932 |
| Exterior Height (mm) | 2355 | 2498 | 2620 |
| Wheelbase (mm) | 3640 | 3585 | 3665 |
| Maximum Width of Side Sliding Door (mm) | 1311 | 1312 | 1260 |
| Maximum Load Length at Floor (mm) | 2450 | 3225 | 3375 |
| Maximum Load Height (mm) | 1726 | 1885 | 2009 |
| Maximum Load Width (mm) | 1832 | 1789 | 1787 |
| Width Between Wheelarches (mm) | 1380 | 1380 | 1350 |
| Maximum Load Volume (cu m) | 9.9 | 10.8 | 10.5 |
| Payload Capacity (kg) | 1288 | 1447 | 1143 |
| Gross Vehicle Weight (kg) | 3500 | 3500 | 3500 |
| Max. Braked Towing Weight (kg) | 3000 | 2500 | 3500 |
