The Maxus Deliver 7 and electric Maxus eDeliver 7 are Medium Vans that can be configured with three length and height combinations – L1/H1, L2/H1 and L2/H2.
It is one of the few models in the medium van sector that offers an extended L2 height to increase versatility.
The dimensions of the Maxus Deliver 7 make it one of the largest models in the medium van class and this is reflected in the overall cargo capacity with a class leading 5.9 cubic metres for L1/H1, 7.2 cubic metres for L2/H1 and 9.2 cubic metres for L2/H2.
This is made possible by the Deliver 7 having a particular short front overhang which allows there to be more space available in the cargo hold.
In terms of useable space, the Deliver 7 has one of the longest load lengths at floor of 2913mm, which is just shy of the class-leading Ford Transit (3002mm). However, it is almost two metres tall in height (H1), giving it a larger load bay overall.

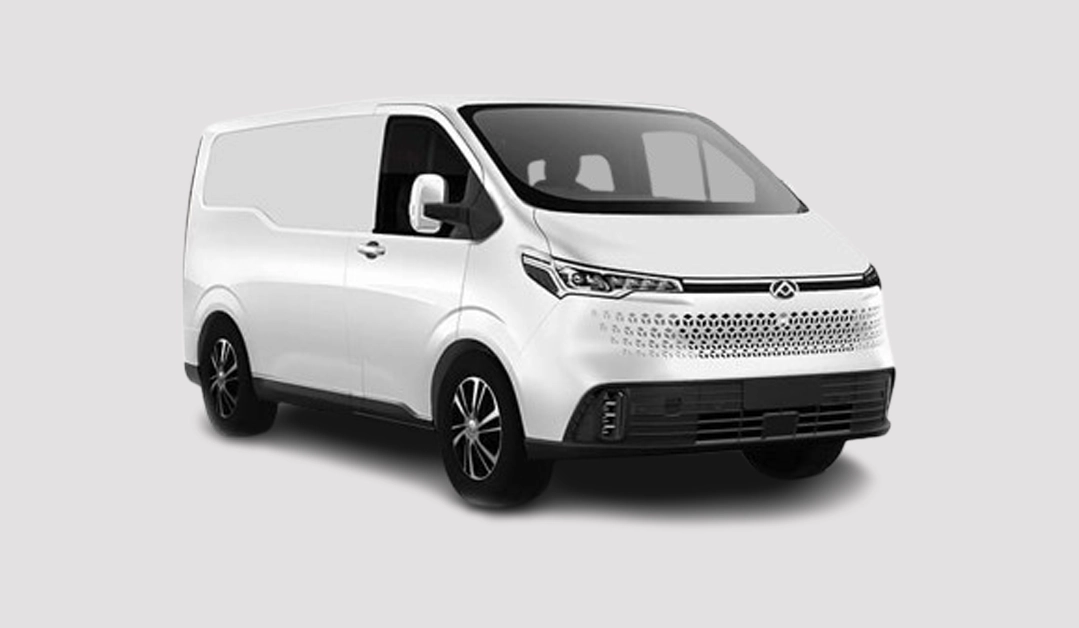

| MAXUS DELIVER 7 DIMENSIONS | L1 H1 | L2 H1 | L2 H2 |
| Exterior Length (mm) | 4998 | 5372 | 5372 |
| Exterior Height (mm) | 1990 | 1999 | 2420 |
| Exterior width excl. door mirrors (mm) | 2030 | 2030 | 2030 |
| Wheelbase (mm) | 3000 | 3357 | 3357 |
| Maximum Width of Side Sliding Door (mm) | 990 | 990 | 990 |
| Maximum Width of Rear Opening (mm) | 1425 | 1425 | 1425 |
| Maximum Load Height of Rear Opening (mm) | 1242 | 1242 | 1494 |
| Maximum Load Length at Floor (mm) | 2547 | 2913 | 2913 |
| Maximum Load Height (mm) | 1328 | 1428 | 1693 |
| Maximum Load Width (mm) | 1800 | 1800 | 1800 |
| Width Between Wheelarches (mm) | 1390 | 1390 | 1390 |
| Maximum Load Volume (cu m) | 5.9 | 7.2 | 9.2 |
The Maxus Deliver 7’s payload capacity ranges from 1025 to 1200kg with the 2.0-litre turbodiesel allowing for the most generous weight.
However, the electric Maxus eDeliver 7 offers class-leading payload capacity of over one-tonne for both the 77kWh and 88kWh models.
The Maxus Deliver 7 offers between 1500 and 2000kg for braked towing capacity either as a turbodiesel or electric version.
| MAXUS DELIVER 7 LOADS, TOWING & WEIGHTS | 2.0 D20 L2 H1 | 2.0 D20 L2 H2 | 77kWh Electric L1 H1 | 77kWh Electric L2 H1 | 88kWh Electric L1 H1 | 88kWh Electric L2 H1 | 88kWh Electric L2 H2 |
| Payload Capacity (kg) | 1220 | 1200 | 1200 | 1135 | 1125 | 1055 | 1025 |
| Gross Vehicle Weight (kg) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Kerbweight (kg) | 2280 | 2300 | 2300 | 2365 | 2375 | 2445 | 2475 |
| Max. Braked Towing Weight (kg) | 2000 | 2000 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Representative to Rivals | Maxus eDeliver 7 77kWh Electric L2 H1 | FIAT E-Scudo 75kWh Primo L2 | Ford E-Transit Custom 64kWh 135PS Limited L2 | Mercedes-Benz eVito 66kWh SELECT L2 |
| Exterior Length (mm) | 5372 | 5331 | 5450 | 5140 |
| Exterior Height (mm) | 1999 | 1935 | 1963 | 1932 |
| Wheelbase (mm) | 3357 | 3275 | 3500 | 2244 |
| Maximum Width of Side Sliding Door (mm) | 990 | 935 | 1030 | 3200 |
| Maximum Load Length at Floor (mm) | 2913 | 2862 | 3002 | 2831 |
| Maximum Load Height (mm) | 1428 | 1397 | 1425 | 1392 |
| Maximum Load Width (mm) | 1800 | 1636 | 1777 | 1709 |
| Width Between Wheelarches (mm) | 1390 | 1258 | 1392 | 1270 |
| Maximum Load Volume (cu m) | 7.2 | 6.1 | 6.5 | 6.0 |
| Payload Capacity (kg) | 1135 | 915 | 966 | 783 |
| Gross Vehicle Weight (kg) | 3500 | 3100 | 3225 | 3200 |
| Max. Braked Towing Weight (kg) | 1500 | 1000 | 2000 | 0 |
