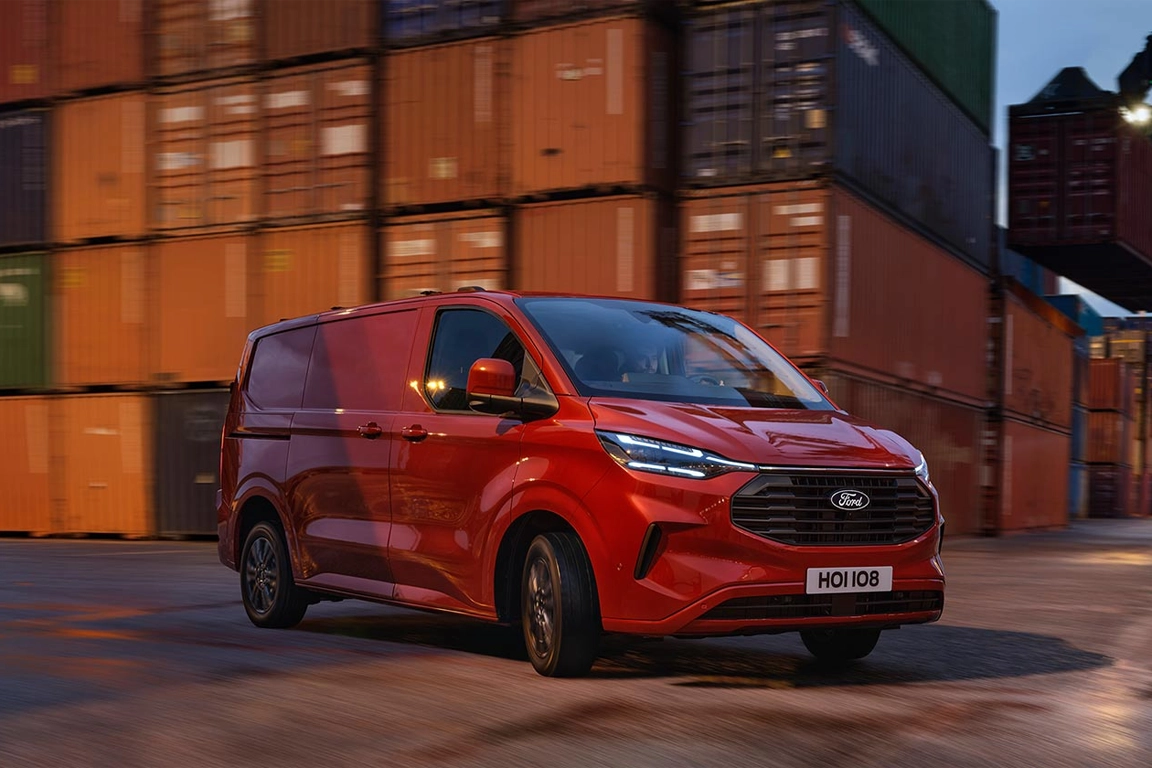

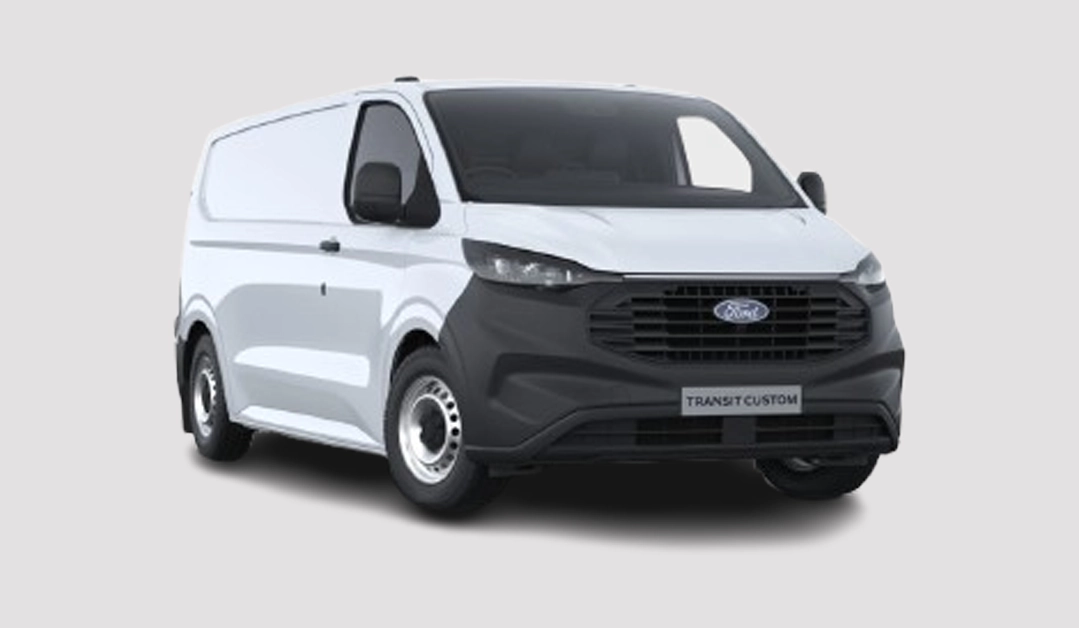

The Ford Transit Custom is a Medium Van offered in two lengths – designated L1 and L2 – coupled with one height option, known as H2. It is also available as a Crew Van, known as Multicab.
The Transit Custom boasts some of the most generous dimensions in its class, with L1 (5050mm) and L2 (5450mm) models both stretching over five metres. The L1 offers 5.8 cu m of load space, while the L2 extends this to 6.8 cu m, making it one of the largest medium vans available.

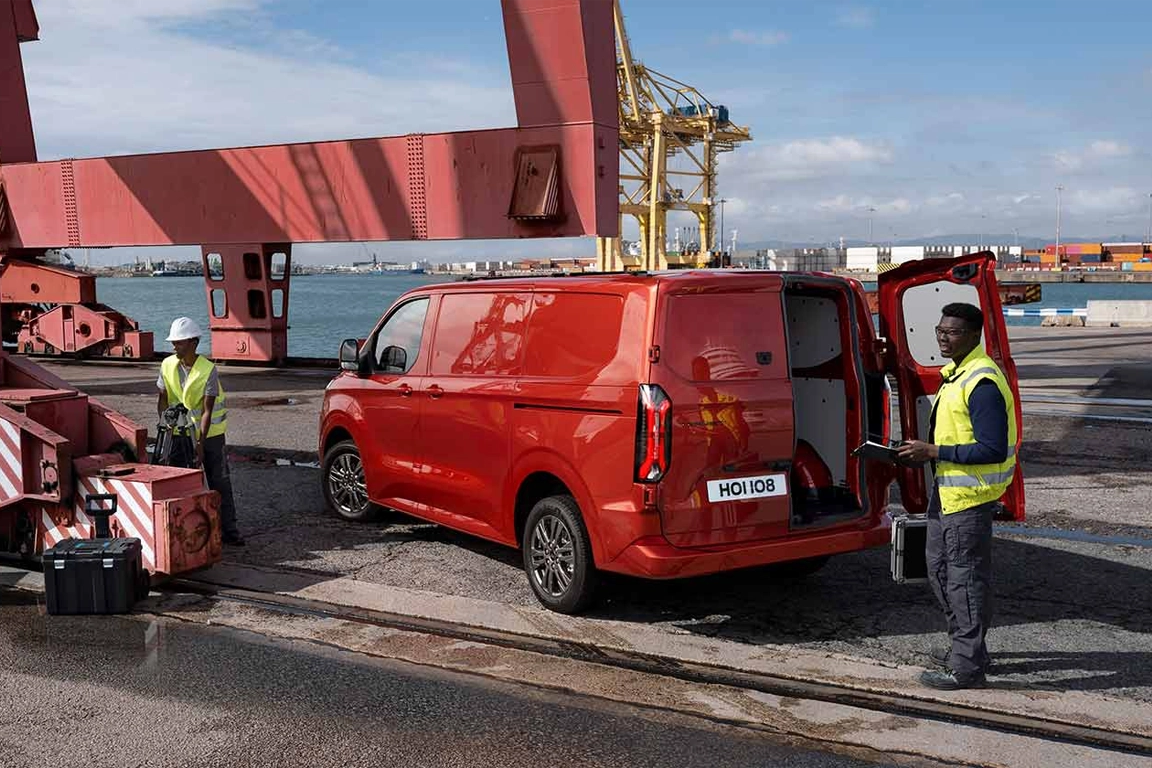

Both versions include a handy bulkhead load-through hatch, allowing longer items to extend into the passenger footwell. This increases load length at floor from 2602mm to 3050mm in the L1, and from 3002mm to 3450mm in the L2.
When compared directly with other medium vans, the Ford Transit Custom ranks among the class leaders with its internal dimensions.
While it does without an H2 version like some rivals, it is the tallest H1 specification medium van in its class (1968mm), while the 1030mm sliding rear door is a wider aperture than the Vauxhall Vivaro.
It also has a wider load bay than models like the Vivaro, Renault Trafic and Mercedes-Benz Vito at 1777mm.
| FORD TRANSIT CUSTOM DIMENSIONS | L1 H1 | L2 H1 |
| Exterior Length (mm) | 5050 | 5450 |
| Exterior Height (mm) | 1968 | 1966 |
| Exterior width inc. door mirrors (mm) | 2275 | 2275 |
| Wheelbase (mm) | 3100 | 3500 |
| Maximum Width of Side Sliding Door (mm) | 1030 | 1030 |
| Maximum Width of Rear Opening (mm) | 1400 | 1400 |
| Maximum Load Height of Rear Opening (mm) | 1314 | 1314 |
| Maximum Load Length at Floor (mm) | 2602 | 3002 |
| Maximum Load Height (mm) | 1267 | 1267 |
| Maximum Load Width (mm) | 1777 | 1777 |
| Width Between Wheelarches (mm) | 1392 | 1392 |
| Maximum Load Volume (cu m) | 5.8 | 6.8 |
The Ford Transit Custom offers wide range of payload capacities, allowing you to select the model that suits your needs.
All but a handful of trims offer a payload capacity of more than one-tonne, with the entry-level 2.0TDI 110PS offering the highest maximum of 1407kg.
Ford designates nomenclature to its models to signify each model's gross vehicle weight - 280 (for 2800kg), 320 (3225kg) and 340 (3350kg).
The towing capacity of the Ford Transit Custom varies depending on which model you choose, but each trim is available with a braked max of between 2000 and 2800kg.
| FORD TRANSIT CUSTOM LOADS, TOWING & WEIGHTS | 2.0TDI 110PS L1 | 2.0TDI 136PS L1 | 2.0TDI 150PS L1 | 2.0TDI 170PS L1 | 2.5TDI 232PS L1 | 65kWh 136PS L1 | 65kWh 218PS L1 | 65kWh 285PS L1 |
| Payload Capacity (kg) | 952-1407 | 892-1407 | 1255-1330 | 1120-1292 | 1107-1182 | 1034-1056 | 1025-1034 | 988 |
| Gross Vehicle Weight (kg) | 2825-3225 | 2825-3225 | 3225 | 3225 | 3225 | 3225 | 3225 | 3225 |
| Kerbweight (kg) | 1818-1873 | 1818-2010 | 1895-1970 | 1933-2105 | 2021-2118 | 2169-2191 | 2191-2200 | 2237 |
| Max. Braked Towing Weight (kg) | 2000 | 2500-2800 | 2500 | 2500 | 2300 | 2300 | 2300 | 2300 |
| 2.0TDI 110PS L2 | 2.0TDI 136PS L2 | 2.0TDI 150PS L2 | 2.0TDI 170PS L2 | 2.5TDI 232PS L2 | 65kWh 136PS L2 | 65kWh 218PS L2 | 65kWh 285PS L2 | |
| Payload Capacity (kg) | 906-1361 | 846-1361 | 1209-1284 | 1074-1237 | 1061-1169 | 1113-1135 | 1104-1113 | 942 |
| Gross Vehicle Weight (kg) | 2825-3225 | 2825-3225 | 3225 | 3225 | 3225 | 3350 | 3350 | 3350 |
| Kerbweight (kg) | 1864-1919 | 1864-2056 | 1941-2016 | 1979-2151 | 2066-2164 | 2215-2237 | 2237-2246 | 2283 |
| Max. Braked Towing Weight (kg) | 2000 | 2500-2800 | 2500 | 2500 | 2300 | 2300 | 2300 | 2300 |
| Representative to Rivals | Ford Transit Custom 2.0TDI 110PS Leader 280 L1 H1 | Vauxhall Vivaro 1.5 Turbo D 120 Panel Van | Renault Trafic 2.0 Blue dCi 130 Advance L1 H1 | Mercedes-Benz Vito 2.0CDI 114 PRO L2 |
| Exterior Length (mm) | 5050 | 4981 | 5080 | 5140 |
| Exterior Height (mm) | 1968 | 1904 | 1971 | 1915 |
| Wheelbase (mm) | 3100 | 3275 | 3098 | 3200 |
| Maximum Width of Side Sliding Door (mm) | 1030 | 935 | 1030 | 822 |
| Maximum Load Length at Floor (mm) | 2602 | 2512 | 2537 | 2831 |
| Maximum Load Height (mm) | 1267 | 1397 | 1387 | 1392 |
| Maximum Load Width (mm) | 1777 | 1636 | 1662 | 1709 |
| Width Between Wheelarches (mm) | 1392 | 1258 | 1268 | 1270 |
| Maximum Load Volume (cu m) | 5.8 | 5.3 | 5.8 | 6.0 |
| Payload Capacity (kg) | 1407 | 1173 | 881 | 905 |
| Gross Vehicle Weight (kg) | 2825 | 2830 | 3070 | 3000 |
| Max. Braked Towing Weight (kg) | 2000 | 2000 | 2500 | 2500 |
