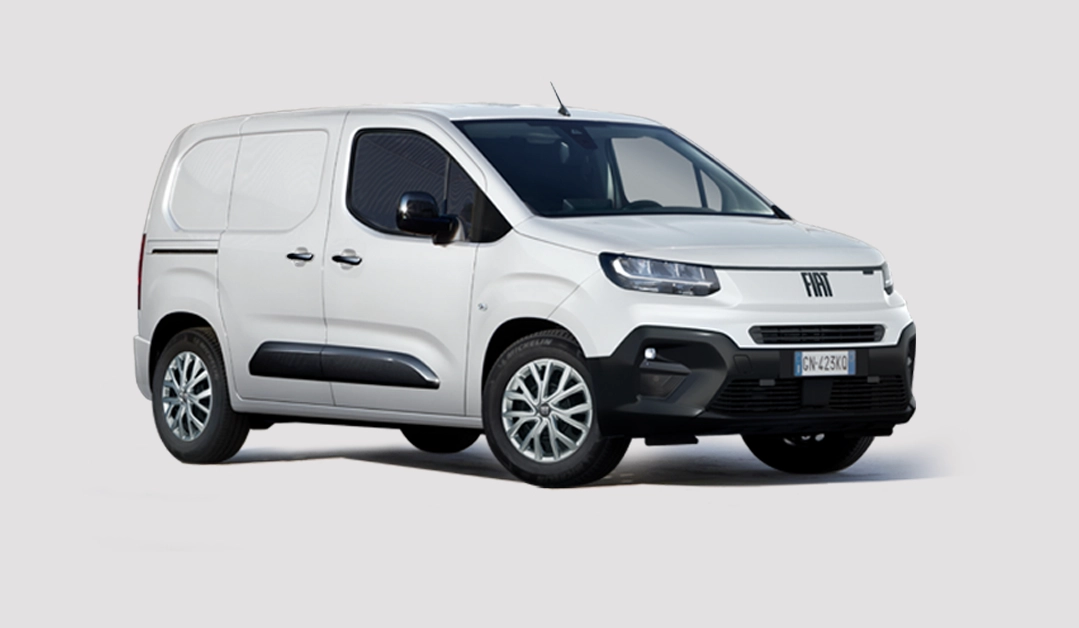

The FIAT Doblo small van comes in L1 and L2 configurations, plus as a Crew Cab Van.
L1 and L2 trims mirror the Citroën Berlingo M and XL, offering the same smart dimensions as the Peugeot Partner and Vauxhall Combo — all engineered together on the same production line as the Doblo and Berlingo.
Three powertrain options are available across both body styles - two turbodiesel engines and a battery-powered electric model. The FIAT Doblo is available in three trim levels: Doblo (Standard), Plus and Primo.

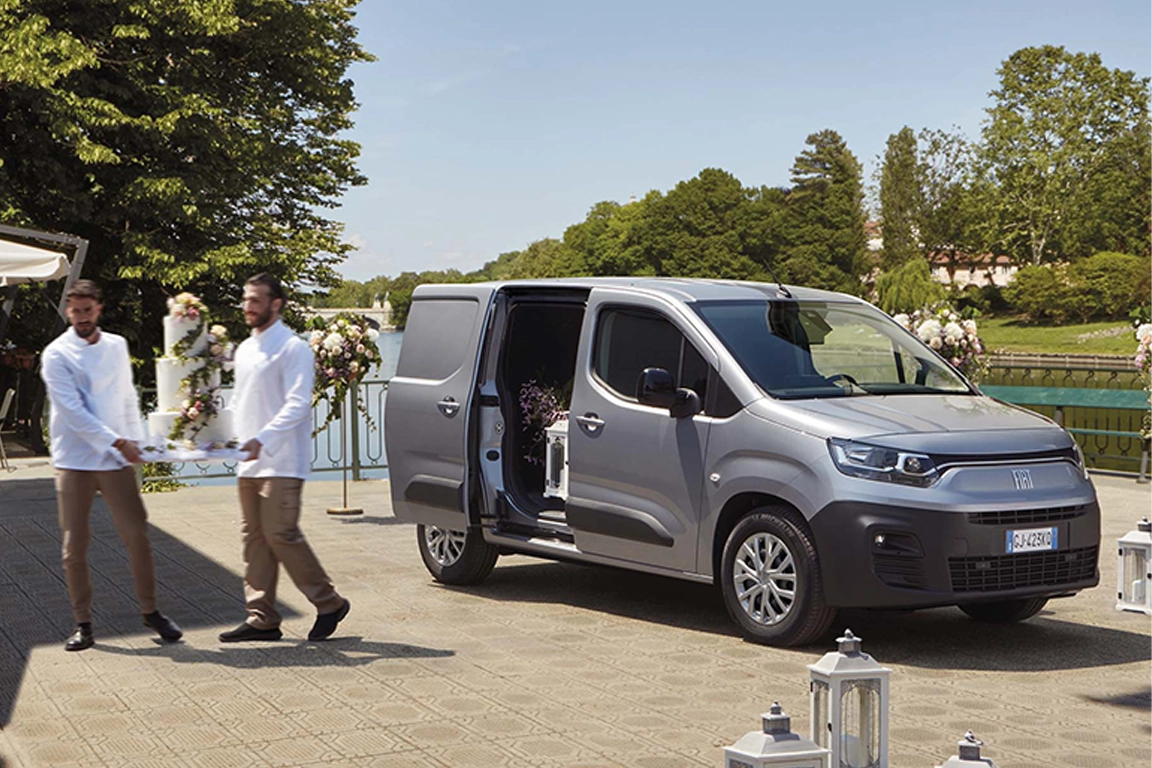

The FIAT Doblo van has asymmetrical solid panel rear doors that open to 180-degrees. The Doblo L1 has one sliding side door, while the L2 comes with sliding doors on each side.
The exterior dimensions of a FIAT Doblo in L1 trim is 4403mm, rising to 4753mm in L2 or Crew Van configuration.
Inside, the FIAT Doblo has a load length of 1817mm (L1) and 2167mm (L2), though this increases to 3090mm (L1) and 3440mm (L2) in Plus and Primo trim. This is made possible by the 'load through bulk' hatch, which extends the load length beyond the bulkhead in a portion of the cargo bay.
In total, it increases total load capacity from 3.3 cubic metres (L1) and 3.8 cubic metres (L2) to 3.9 cubic metres and 4.4 cubic metres respectively.
The FIAT Doblo in Plus and Primo trim also features a dual bench seat to allow three adults to be seated in the front.
| FIAT DOBLO DIMENSIONS | L1 | L2 | L1 (Load Through) | L2 (Load Through) | Crew Van |
| Exterior Length (mm) | 4403 | 4753 | 4403 | 4753 | 4753 |
| Exterior Height (mm) | 1796 - 1860 | 1812 - 1860 | 1796 - 1860 | 1812 - 1860 | 1812 - 1860 |
| Exterior width inc. door mirrors (mm) | 2107 | 2107 | 2107 | 2107 | 2107 |
| Wheelbase (mm) | 2785 | 2975 | 2785 | 2975 | 2975 |
| Maximum Width of Side Sliding Door (mm) | 675 | 675 | 675 | 675 | 675 |
| Maximum Width of Rear Opening (mm) | 1241 | 1241 | 1241 | 1241 | 1241 |
| Maximum Load Height of Rear Opening (mm) | 1196 | 1196 | 1196 | 1196 | 1196 |
| Maximum Load Length at Floor (mm) | 1817 | 2167 | 3090 | 3440 | 1450 |
| Maximum Load Height (mm) | 1200 | 1270 | 1200 | 1270 | 1243 |
| Maximum Load Width (mm) | 1527 | 1527 | 1527 | 1527 | 1527 |
| Width Between Wheelarches (mm) | 1229 | 1229 | 1229 | 1229 | 1229 |
| Maximum Load Volume (cu m) | 3.3 | 3.9 | 3.8 | 4.4 | 1.8 |
The FIAT Doblo has a payload of between 642 and 982kg depending on which engine/powertrain and body configuration you choose.
The entry-level 100PS 1.5-litre Multijet3 turbodiesel L1 is the most generous with payload, offering 982kg.
The FIAT Doblo has between 900kg and 1030kg available in maximum braked towing capacity when selected with a turbodiesel engine, both 100PS and 130PS.
The 52kWh electric model offers a maximum braked towing capacity of 750kg.
| FIAT DOBLO LOADS & WEIGHTS | 1.5 Multijet3 L1 | 1.5 Multijet3 L2 | 1.5 Multijet3 Crew | 52kW Electric L1 | 52kWh Electric L2 | 52kWh Electric Crew |
| Payload Capacity (kg) | 982 | 927-953 | 840 | 759-781 | 691-709 | 642 |
| Gross Vehicle Weight (kg) | 2370-2390 | 2040-2400 | 2400 | 2450-2455 | 2450 | 2455 |
| Kerbweight (kg) | 1388-1446 | 1441-1473 | 1560 | 1674-1691 | 1741-1759 | 1813 |
| Max. Braked Towing Weight (kg) | 900-1000 | 1000-1050 | 1030 | 750 | 750 | 750 |
| FIAT Doblo 1.5 Multijet3 100 L1 | Ford Transit Connect 2.0 EcoBlue 102 Trend SWB | Renault Kangoo 1.5 Blue dCi 95 Advance MWB | Peugeot Partner 1.5 Blue HDi 100 Professional Standard | Vauxhall Combo 1.5 Turbo D 100 Prime M | |
| Exterior Length (mm) | 4403 | 4500 | 4486 | 4403 | 4403 |
| Exterior Height (mm) | 1796 | 1856 | 1864 | 1796 | 1796 |
| Wheelbase (mm) | 2785 | 2755 | 2716 | 2785 | 2795 |
| Maximum Width of Side Sliding Door (mm) | 675 | 703 | 615 | 675 | 675 |
| Maximum Load Length at Floor (mm) | 1817 | 1797 | 1806 | 1817 | 1817 |
| Maximum Load Height (mm) | 1200 | 1272 | 1215 | 1200 | 1200 |
| Maximum Load Width (mm) | 1527 | 1628 | N/A | 1630 | 1630 |
| Width Between Wheelarches (mm) | 1229 | 1230 | N/A | 1229 | 1229 |
| Maximum Load Volume (cu m) | 3.3 | 3.1 | 3.3 | 3.3 | 3.3 |
| Payload Capacity (kg) | 982 | 740 | 677 | 982 | 982 |
| Gross Vehicle Weight (kg) | 2370 | 2220 | 2180 | 2370 | 2370 |
| Max. Braked Towing Weight (kg) | 1000 | 1500 | 1500 | 1000 | 1000 |
