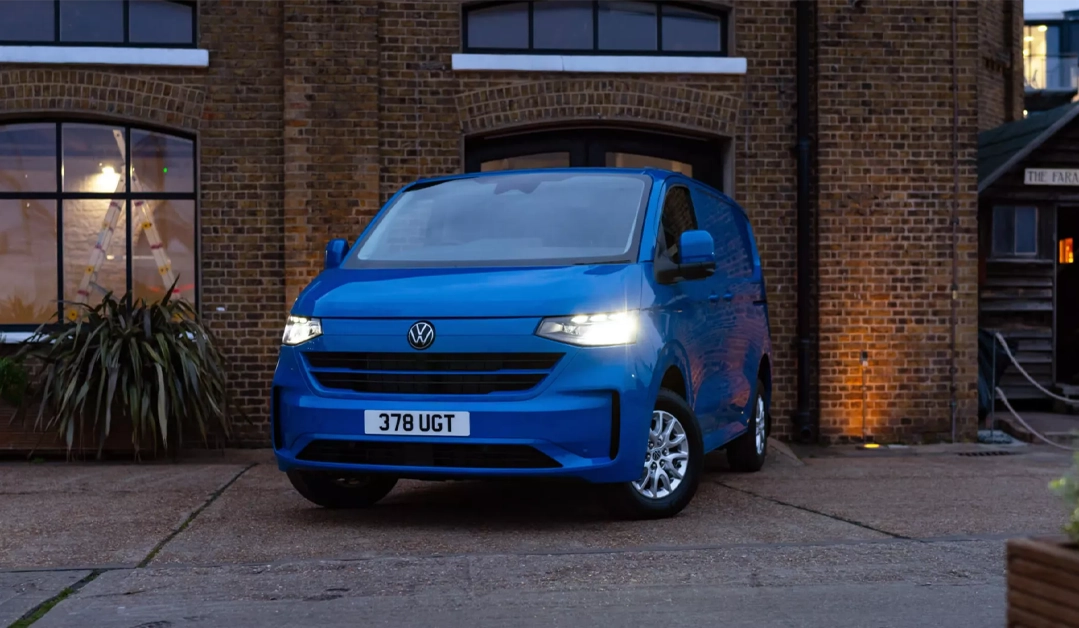

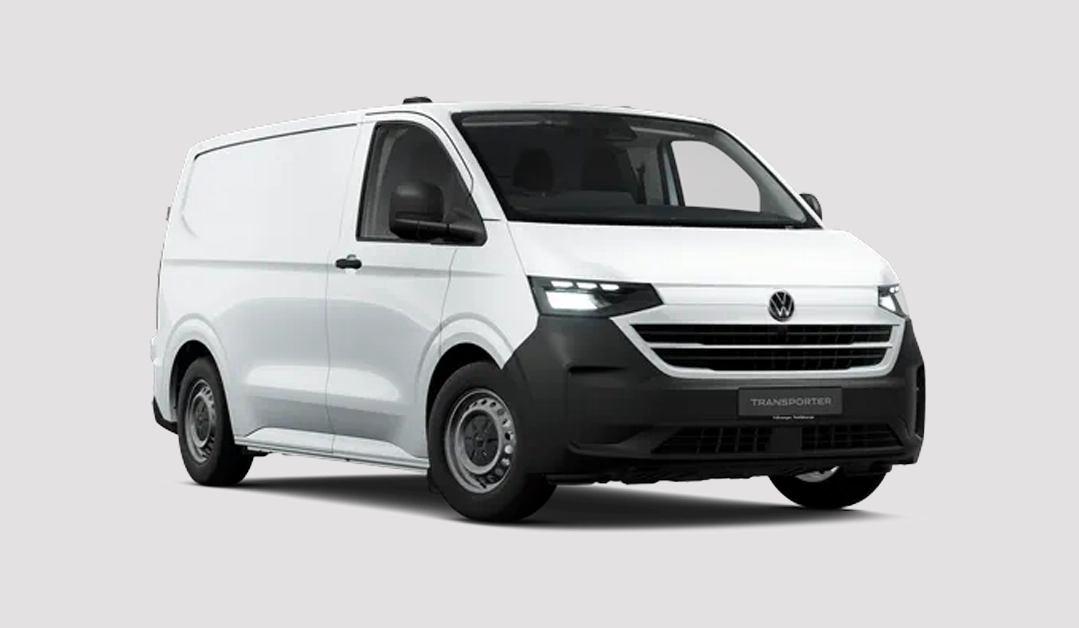

The Volkswagen Transporter and electric Volkswagen e-Transporter are Medium Vans that are available in SWB and LWB (short and long wheelbase) lengths with a single ‘normal roof’ height (H1).
Based on the same platform as the Ford Transit Custom, the Volkswagen Transporter dimensions are therefore identical to that of its cousin.
This ensures the Transporter is one of the largest and most practical models in the medium van class thanks to even the SWB model being over five-metres in length (5050mm), rising to 5450mm for the LWB model.
Assisted by a SWB wheelbase of 3100mm and a LWB wheelbase of 3500mm, the Transporter offers 5.8 and 6.8 cubic metres of cargo space.

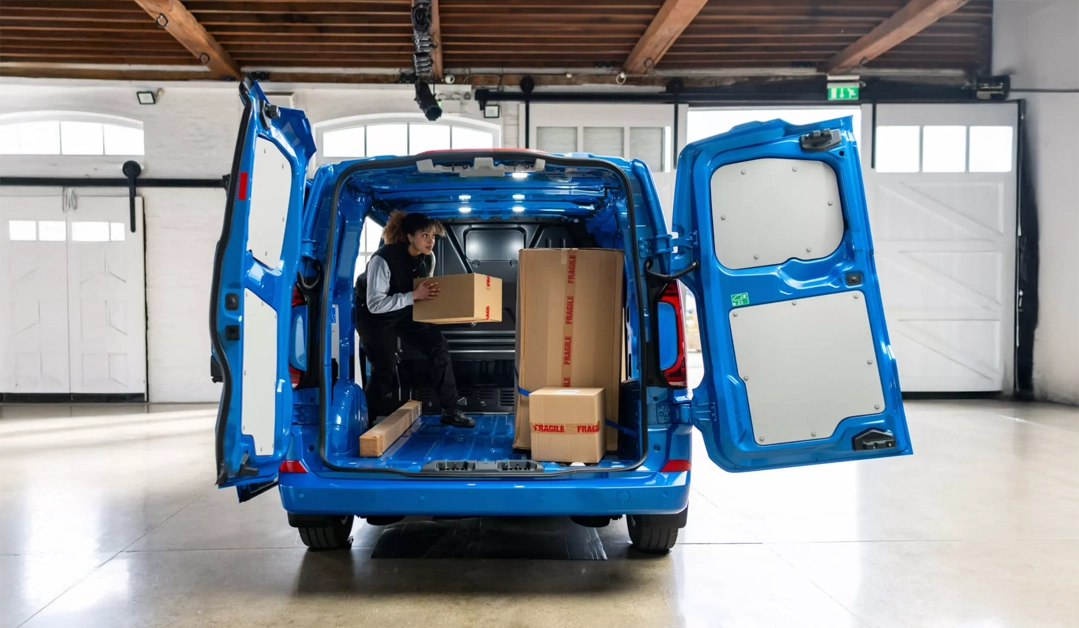

It also has a useable 2602mm of load length at the floor, rising to 3050mm when fitted with a load-through bulkhead option.
The Transporter is also available as a Kombi crew van in both SWB and LWB configurations, while 2026 is set to see the launch of a high roof (H2) version that isn’t offered on the Ford Transit Custom.
| VOLKSWAGEN TRANSPORTER DIMENSIONS | SWB | LWB | Kombi SWB | Kombi LWB |
| Exterior Length (mm) | 5050 | 5450 | 5050 | 5450 |
| Exterior Height (mm) | 1978 | 1978 | 1965 | 1965 |
| Exterior width incl. door mirrors (mm) | 2275 | 2275 | 2275 | 2275 |
| Wheelbase (mm) | 3100 | 3500 | 3100 | 3500 |
| Maximum Width of Side Sliding Door (mm) | 1030 | 1030 | 1030 | 1030 |
| Maximum Width of Rear Opening (mm) | 1335 | 1335 | 1335 | 1335 |
| Maximum Load Height of Rear Opening (mm) | 1316 | 1316 | 1316 | 1316 |
| Maximum Load Length at Floor (mm) | 2602 | 3002 | 1632 | 2032 |
| Maximum Load Height (mm) | 1267 | 1267 | 1267 | 1267 |
| Maximum Load Width (mm) | 1777 | 1777 | 1777 | 1777 |
| Width Between Wheelarches (mm) | 1392 | 1392 | 1392 | 1392 |
| Maximum Load Volume (cu m) | 5.8 | 6.8 | TBC | TBC |
The Volkswagen Transporter’s payload capacity varies depending on the gross vehicle weight, the wheelbase and the choice of engine.
With a turbodiesel engine, the Transporter has a payload capacity of between 851-1280kg in class with the 2.0-litre TDI 150PS offering the most generous weight potential.
The electric Volkswagen e-Transporter offers between 1009-1092kg of payload capacity
The Volkswagen Transporter’s braked towing capacity ranges from 2000 to 2800kg across the entire range, including electric models.
| VOLKSWAGEN TRANSPORTER KOMBI LOADS, TOWING & WEIGHTS | 2.0TDI 110PS SWB | 2.0TDI 150PS SWB | 2.0TDI 170PS SWB | 2.0TDI 110PS LWB |
| Payload Capacity (kg) | 851-1280 | 813-1280 | 1038-1238 | 809-1068 |
| Gross Vehicle Weight (kg) | 2800-3225 | 2800-3225 | 3025-3225 | 2800-3025 |
| Kerbweight (kg) | 1911-1949 | 1945-2084 | 1987 | 1957-1995 |
| Max. Braked Towing Weight (kg) | 2000 | 2800 | 2800 | 2000 |
| 65kWh Electric 136PS SWB | 65kWh Electric 218PS SWB | 65kWh Electric 136PS LWB | 65kWh Electric 218PS LWB | |
| Payload Capacity (kg) | 1009-1013 | 1009 | 1088-1092 | 1088 |
| Gross Vehicle Weight (kg) | 3225 | 3225 | 3350 | 3350 |
| Kerbweight (kg) | 2212-2216 | 2216 | 2258-2262 | 2262 |
| Max. Braked Towing Weight (kg) | 2300 | 2300 | 2300 | 2300 |
| Representative to Rivals | Volkswagen Transporter 2.0TDI 170PS Commerce Pro T32 LWB | Mercedes-Benz Vito 2.0CDI 116 SELECT L2 | Ford Transit Custom 2.0D EcoBlue 170PS Limited 320 L2 |
| Exterior Length (mm) | 5450 | 5140 | 5450 |
| Exterior Height (mm) | 1978 | 1915 | 1963 |
| Wheelbase (mm) | 3500 | 3200 | 3500 |
| Maximum Width of Side Sliding Door (mm) | 1030 | 822 | 1030 |
| Maximum Load Length at Floor (mm) | 3450 | 2831 | 3002 |
| Maximum Load Height (mm) | 1316 | 1392 | 1425 |
| Maximum Load Width (mm) | 1777 | 1709 | 1777 |
| Width Between Wheelarches (mm) | 1392 | 1270 | 1392 |
| Maximum Load Volume (cu m) | 6.8 | 6.0 | 6.5 |
| Payload Capacity (kg) | 1192 | 832 | 1161 |
| Gross Vehicle Weight (kg) | 3225 | 3000 | 3225 |
| Max. Braked Towing Weight (kg) | 2800 | 2500 | 2800 |
