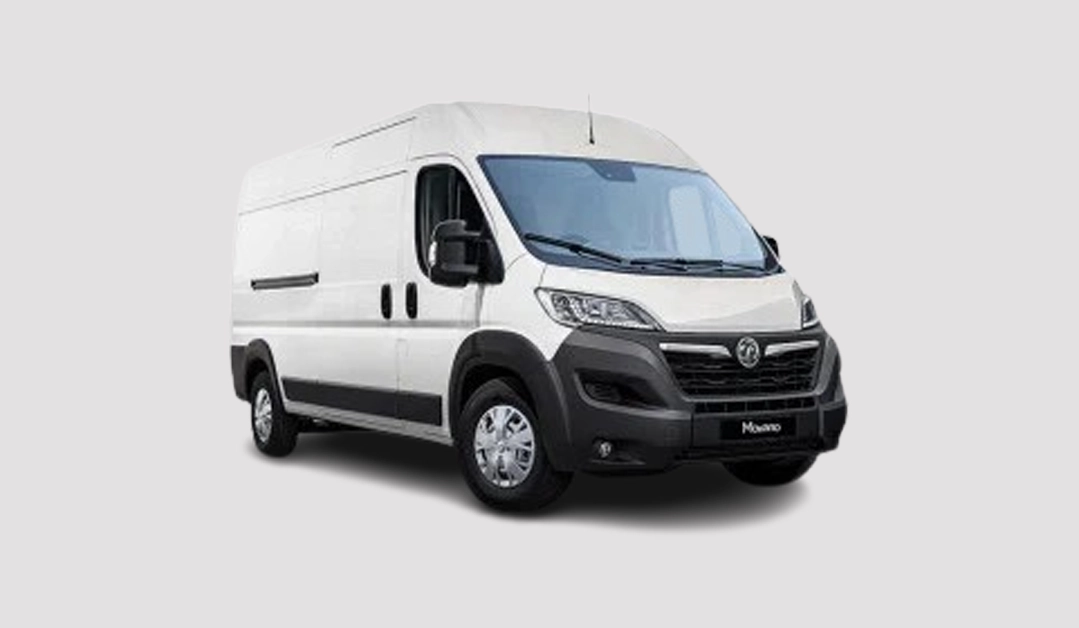

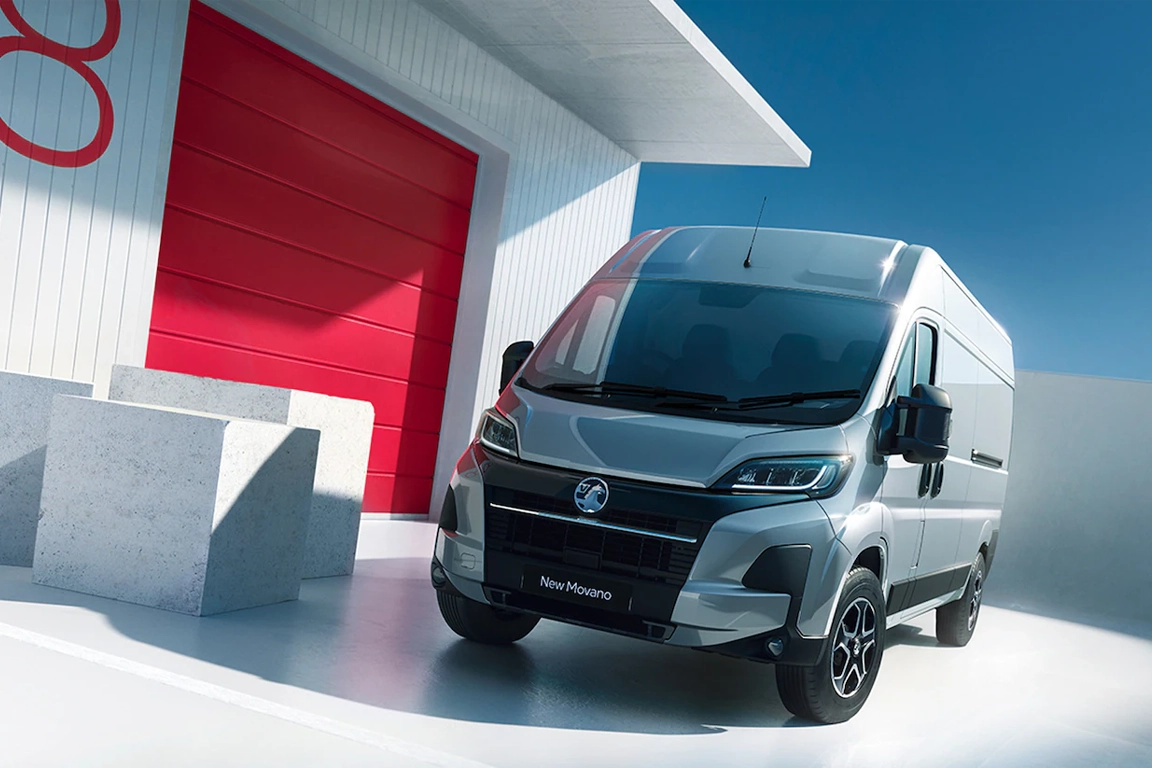

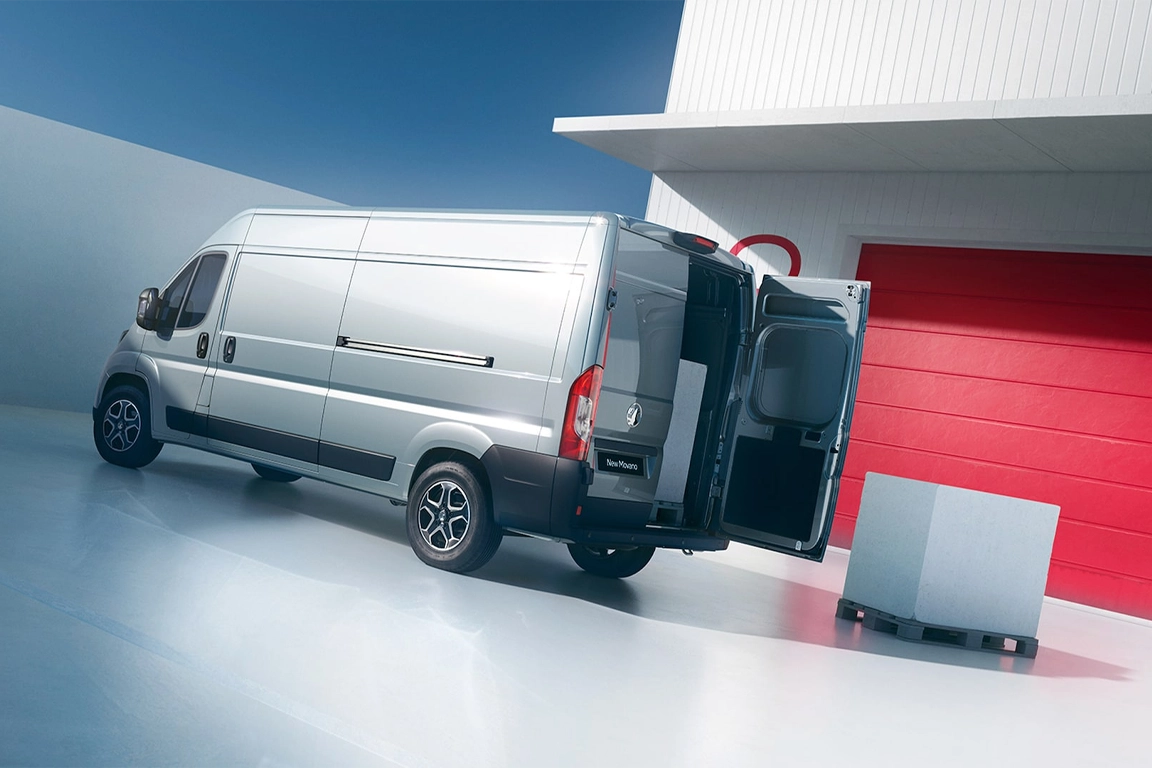

The Vauxhall Movano, Vauxhall Movano Electric and Vauxhall Movano Hydrogen are Large Vans offered in a choice of six different length and heigh: L2/H1, L2/H2, L3/H2, L4/H2, L4/H3.
Sharing its platform with the Citroen Relay, FIAT Ducato, Peugeot Boxer, and Toyota Proace Max, the Vauxhall Movano mirrors their dimensions while offering outstanding versatility.
With one of the widest selections of body sizes in the large van class, the Movano adapts to your business needs. From six Panel Van options to Window Van, Chassis Cab, Platform Cab, Dropside, and Back-to-Back styles, there's a configuration for every job.
In its largest L4/H3 version, the Movano boasts up to 17 cubic metres of cargo space and a 4,070mm load length, outclassing rivals like the Peugeot Boxer's shorter L2 and L3 models.
The Vauxhall Movano offers impressive flexibility in height, starting at 1662mm in its compact H1 guise, rising to 1932mm in H2, and reaching 2172mm in the tallest H3 model.
Cargo volume ranges from 10 cubic metres in the smallest L2/H1 up to 15 cubic metres in the larger L3/H3 and L4/H2 versions, giving you the space you need without compromise.
Clever design sets the Movano apart - both the L3 and L4 share the same wheelbase, but the L4's extra length sits behind the rear axle. This maximises payload capacity while ensuring a wide, unobstructed loading area.
| VAUXHALL MOVANO DIMENSIONS | L2 H1 | L2 H2 | L3 H2 | L3 H3 | L4 H2 | L4 H3 |
| Exterior Length (mm) | 5413 | 5413 | 5998 | 5998 | 6363 | 6363 |
| Exterior Height (mm) | 2254 | 2522 | 2522 | 2760 | 2522 | 2760 |
| Exterior width excl. door mirrors (mm) | 2050 | 2050 | 2050 | 2050 | 2050 | 2050 |
| Wheelbase (mm) | 3450 | 3450 | 4035 | 4035 | 4035 | 4035 |
| Maximum Width of Side Sliding Door (mm) | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Maximum Width of Rear Opening (mm) | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Maximum Load Height of Rear Opening (mm) | 1520 | 1790 | 1790 | 2030 | 1790 | 2030 |
| Maximum Load Length at Floor (mm) | 3120 | 3120 | 3705 | 3705 | 4070 | 4070 |
| Maximum Load Height (mm) | 1662 | 1932 | 1932 | 2172 | 1932 | 2172 |
| Maximum Load Width (mm) | 1870 | 1870 | 1870 | 1870 | 1870 | 1870 |
| Width Between Wheelarches (mm) | 1422 | 1422 | 1422 | 1422 | 1422 | 1422 |
| Maximum Load Volume (cu m) | 10.0 | 11.5 | 13.0 | 15.0 | 15.0 | 17.0 |
The payload capacity of the Vauxhall Movano is dependent on which engine and body size is chosen.
The largest model in the range - the L4 - can carry up to 2030kg using the more powerful 178bhp (180) designation of the 2.2-litre turbodiesel. The 140 turbodiesel - which is offered in L2, L3 and L4 lengths - has a payload capacity that ranges from 1235kg to 1500kg.
In electric trim, the Vauxhall Movano Electric offers a payload capacity of between 710kg and 1460kg depending on which length you choose.
The Vauxhall Movano Hydrogen is currently unique to Vauxhall's range and presents comparable payload capacity totals with the L3 H2 allowing for 1370kg, while the L4 H3 is 1315kg.
The Vauxhall Movano offers a generous towing capacity across the entire range, no matter the body style configuration or powertrain choice.
In turbodiesel guise, the Relay can achieve a maximum 3000kg towing capacity with the largest L4 body style, while smaller L2 and L3 models range between 2500kg and 3000kg.
Using the electric powertrain, the Vauxhall Movano Electric has a maximum braked towing capacity of 2400kg.
| VAUXHALL MOVANO LOADS, TOWING & WEIGHTS | 2.2 Turbo D 140PS L2 H1 | 2.2 Turbo D 140PS L2 H2 | 2.2 Turbo D 140PS L3 H2 | 2.2 Turbo D 140PS L3 H3 | 2.2 Turbo D 140PS Heavy L3 H2 | 2.2 Turbo D 140PS Heavy L4 H2 | 2.2 Turbo D 140PS Heavy L4 H3 | 2.2 Turbo 180PS Heavy L4 H2 |
| Payload Capacity (kg) | 1500 | 1415-1475 | 1365-1425 | 1400 | 1310 | 1265 | 1235 | 2030 |
| Gross Vehicle Weight (kg) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 4250 |
| Kerbweight (kg) | 2000 | 2025-2085 | 2075-2135 | 2100 | 2190 | 2235 | 2265 | 2220 |
| Max. Braked Towing Weight (kg) | 2500 | 2500 | 2500 | 2500 | 3000 | 3000 | 3000 | 2250 |
| Vauxhall Movano 2.2 Turbo D 140PS Heavy L4 H3 | Ford Transit 2.0 EcoBlue 165PS L4 H3 | Volkswagen Crafter 2.0 TDI 163PS CR35 LWB/HR | |
| Exterior Length (mm) | 6363 | 6704 | 6836 |
| Exterior Height (mm) | 2760 | 2680 | 2590 |
| Wheelbase (mm) | 4035 | 3750 | 4490 |
| Maximum Width of Side Sliding Door (mm) | 1250 | 1300 | 1311 |
| Maximum Load Length at Floor (mm) | 4070 | 4256 | 4300 |
| Maximum Load Height (mm) | 2172 | 2025 | 1961 |
| Maximum Load Width (mm) | 1870 | 1784 | 1832 |
| Width Between Wheelarches (mm) | 1422 | 1392 | 1380 |
| Maximum Load Volume (cu m) | 17.0 | 15.1 | 14.4 |
| Payload Capacity (kg) | 1235 | 1163 | 1022 |
| Gross Vehicle Weight (kg) | 3500 | 3550 | 3500 |
| Max. Braked Towing Weight (kg) | 3000 | 2850 | 3500 |
