The Vauxhall Combo benefits from being one of the small van sector’s most practical and useable models.
Identical in size to its Citroen/FIAT/Peugeot/Toyota siblings, like its sisters the Combo is available in Standard (L1) and XL (L2) body configuration, plus Crew Van based on the XL size.
In a testament to the excellent packaging of the vehicle that despite being one of the most compact in terms of external dimensions, the Combo offers class-leading interior room.

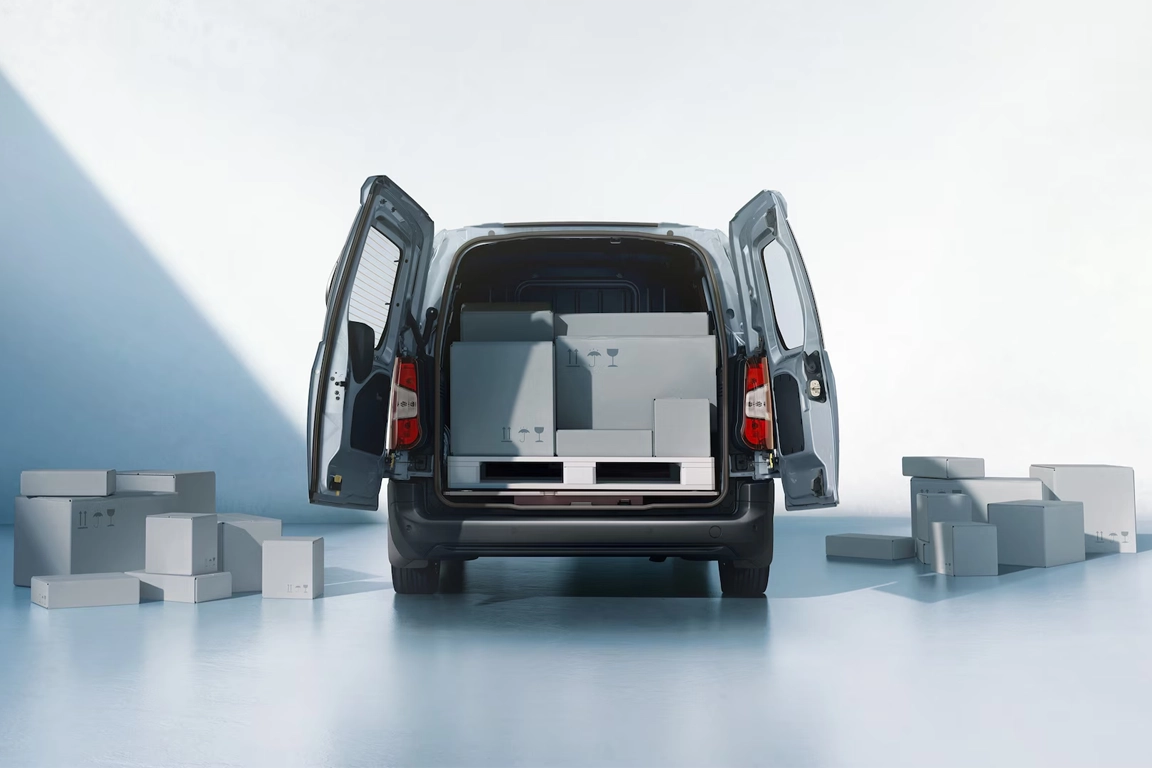

With a load volume of 3.3 cubic metres in standard L1 guise, the Combo XL (L2) expands this to 3.9 cubic metres as a panel van.
However, the Combo also comes with the option of a 'load through' hatch in the main bulkhead, which opens up space in the passenger compartment when the front seat/bench is folded. This extends the offside load length from 1817mm to 3090mm in L1 guise or 2167mm to 3440mm in L2 guise.
Ideal for long loads, such as timber and poles, optioning the load through hatch increases total load volume to 3.8 cubic metres (L1-STD) and 4.4 cubic metres (L2-XL).
The Combo can also be specified with a dual-passenger bench seat, which allows for three people to be accommodated.

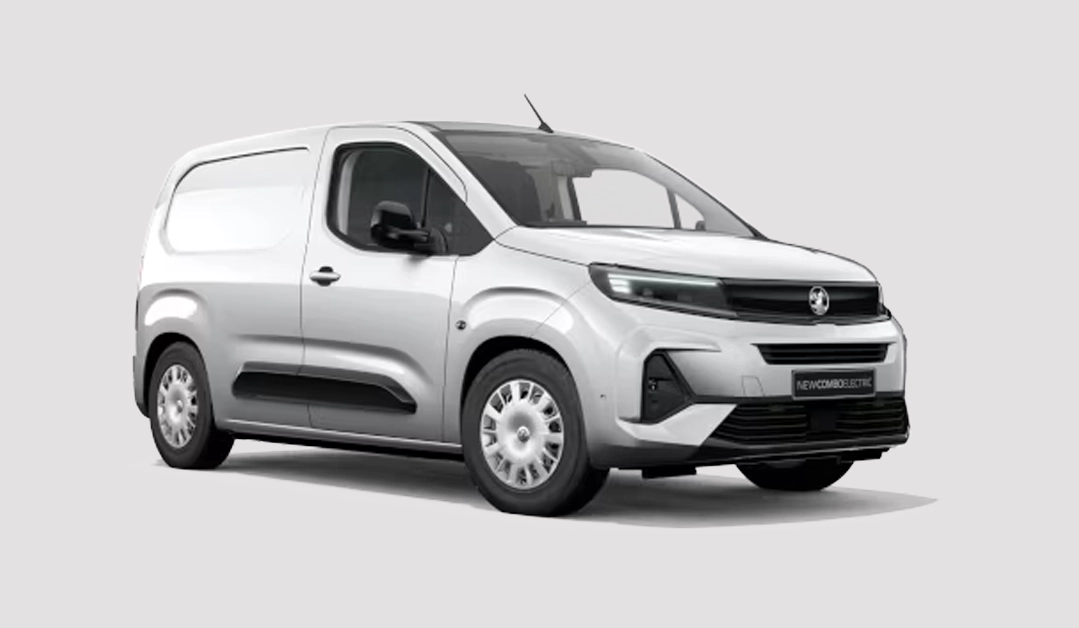

| VAUXHALL COMBO DIMENSIONS | Panel Van | XL | Panel Van (Load Through) | XL (Load Through) | Crew Van |
| Exterior Length (mm) | 4403 | 4753 | 4403 | 4753 | 4753 |
| Exterior Height (mm) | 1796 - 1860 | 1812 - 1860 | 1796 - 1860 | 1812 - 1860 | 1812 - 1860 |
| Exterior width inc. door mirrors (mm) | 2107 | 2107 | 2107 | 2107 | 2107 |
| Wheelbase (mm) | 2785 | 2975 | 2785 | 2975 | 2975 |
| Maximum Width of Side Sliding Door (mm) | 675 | 675 | 675 | 675 | 675 |
| Maximum Width of Rear Opening (mm) | 1241 | 1241 | 1241 | 1241 | 1241 |
| Maximum Load Height of Rear Opening (mm) | 1196 | 1196 | 1196 | 1196 | 1196 |
| Maximum Load Length at Floor (mm) | 1817 | 2167 | 3090 | 3440 | 1450 |
| Maximum Load Height (mm) | 1200 | 1270 | 1200 | 1270 | 1243 |
| Maximum Load Width (mm) | 1527 | 1527 | 1527 | 1527 | 1527 |
| Width Between Wheelarches (mm) | 1229 | 1229 | 1229 | 1229 | 1229 |
| Maximum Load Volume (cu m) | 3.3 | 3.9 | 3.8 | 4.4 | 1.8 |
The Vauxhall Combo offers a payload ranging between 642 and 982kg depending on which engine/powertrain and body configuration you choose.
The entry-level 100PS 1.5CDTi turbodiesel Panel Van is the most generous with payload, offering 982kg.
The Vauxhall Combo has between 900kg and 1050kg available in maximum braked towing capacity when selected with a turbodiesel engine, both 100PS and 130PS.
The 52kWh electric model offers a maximum braked towing capacity of 750kg.
| VAUXHALL COMBO LOADS & WEIGHTS | 1.5 HDi Standard | 1.5 HDi Long | 1.5 HDi Crew | 52kW Electric Standard | 52kWh Electric Long | 52kWh Electric Crew |
| Payload Capacity (kg) | 982 | 927-953 | 840 | 759-781 | 691-709 | 642 |
| Gross Vehicle Weight (kg) | 2370-2390 | 2040-2400 | 2400 | 2450-2455 | 2450 | 2455 |
| Kerbweight (kg) | 1388-1446 | 1441-1473 | 1560 | 1674-1691 | 1741-1759 | 1813 |
| Max. Braked Towing Weight (kg) | 900-1000 | 1000-1050 | 1030 | 750 | 750 | 750 |
| Vauxhall Combo 1.5 Turbo D 100 Prime M | Ford Transit Connect 2.0 EcoBlue 102 Trend SWB | Peugeot Partner 1.5 Blue HDi 100 Professional Standard | Citroen Berlingo 1.5 Blue HDi 100 Enterprise M | Renault Kangoo 1.5 Blue dCi 95 Advance MWB | |
| Exterior Length (mm) | 4403 | 4500 | 4403 | 4403 | 4486 |
| Exterior Height (mm) | 1796 | 1856 | 1796 | 1796 | 1864 |
| Wheelbase (mm) | 2795 | 2755 | 2785 | 2785 | 2716 |
| Maximum Width of Side Sliding Door (mm) | 675 | 703 | 675 | 675 | 615 |
| Maximum Load Length at Floor (mm) | 1817 | 1797 | 1817 | 1817 | 1806 |
| Maximum Load Height (mm) | 1200 | 1272 | 1200 | 1200 | 1215 |
| Maximum Load Width (mm) | 1630 | 1628 | 1630 | 1527 | N/A |
| Width Between Wheelarches (mm) | 1229 | 1230 | 1229 | 1229 | N/A |
| Maximum Load Volume (cu m) | 3.3 | 3.1 | 3.3 | 3.3 | 3.3 |
| Payload Capacity (kg) | 982 | 740 | 982 | 982 | 677 |
| Gross Vehicle Weight (kg) | 2370 | 2220 | 2370 | 2370 | 2180 |
| Max. Braked Towing Weight (kg) | 1000 | 1500 | 1000 | 1000 | 1500 |
