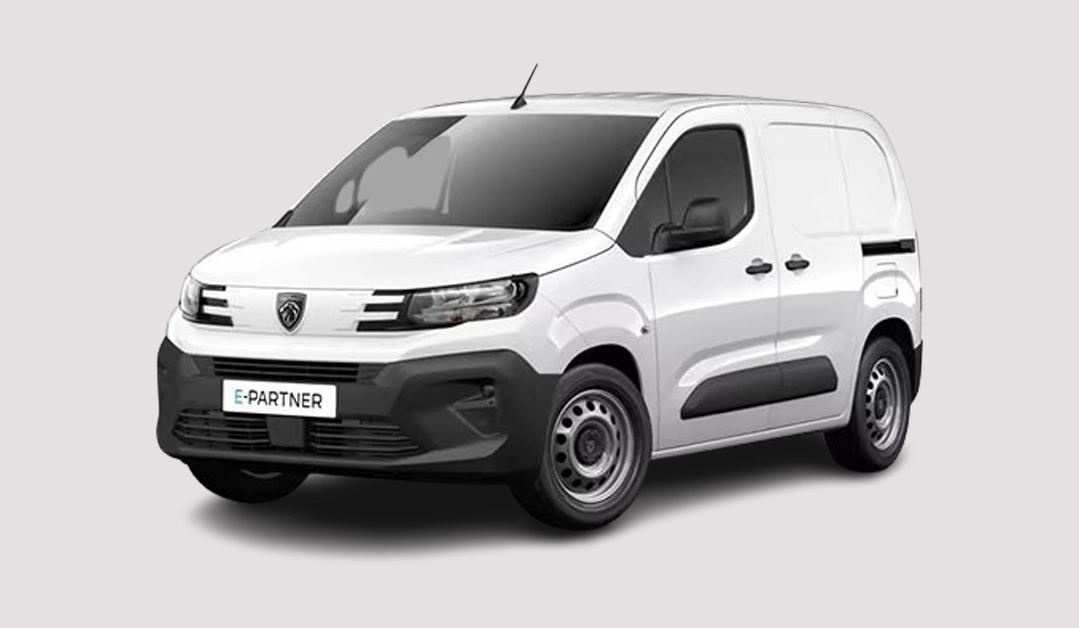

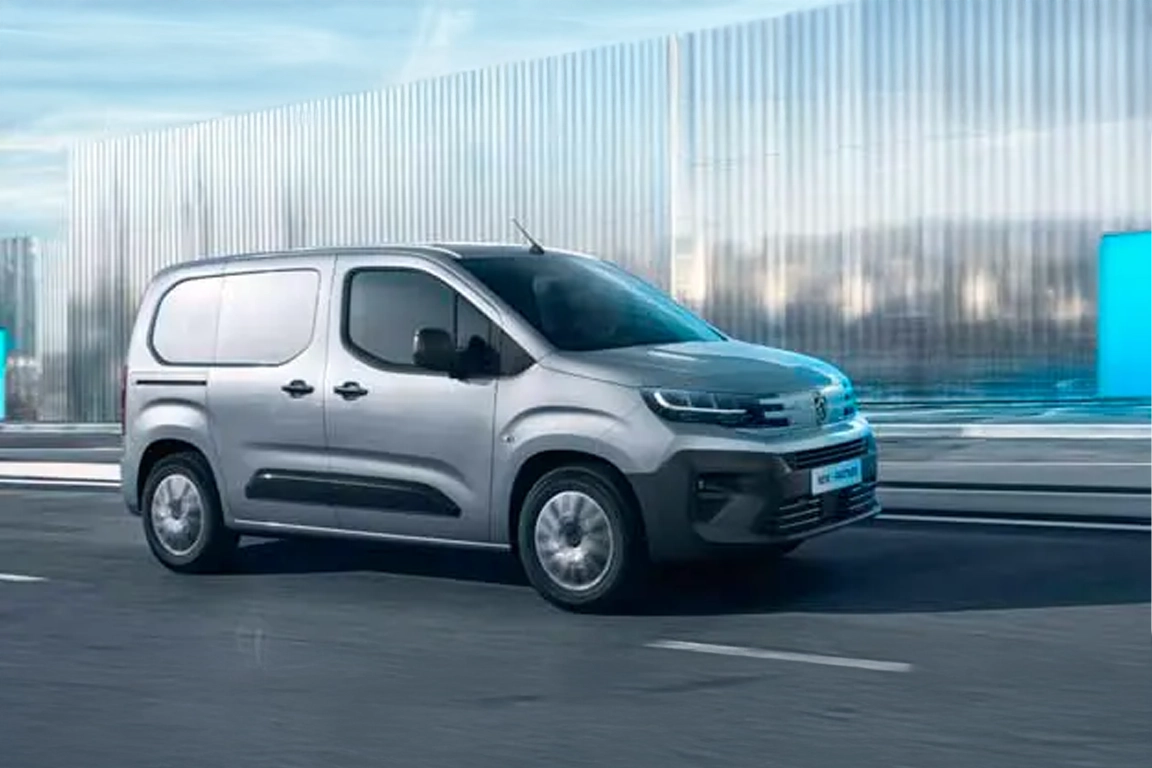

The Peugeot Partner and Peugeot E-Partner is a small van comes in L1 and L2 configurations, plus as a Crew Cab Van.
Standard and Long trims are the equivalent of the sister Citroen Berlingo M and XL. It gives the Peugeot Partner identical dimensions to that of the Berlingo, plus the FIAT Doblo, Peugeot Partner and Vauxhall Combo.
Three powertrain options are available across both body styles - two 1.5-litre turbodiesel engines, one generating 101bhp, the other 129bhp, plus a 52kWh battery-powered electric model generating 134bhp. The Peugeot Partner is available in three trim levels: Professional, Professional Plus and Asphalt.
The Peugeot Partner van has asymmetrical solid panel rear doors that open to 180-degrees. The Partner Standard has one sliding side door, while the Long comes with sliding doors on each side.
The exterior dimensions of a Peugeot Partner as a Standard trim is 4403mm, rising to 4753mm in Long or Crew Van configuration.
Inside, the Peugeot Partner has a load length of 1817mm (Standard) and 2167mm (Long), though this increases to 3090mm (Standard) and 3440mm (Long). This is made possible by the 'load through bulk' hatch, which extends the load length beyond the bulkhead in a portion of the cargo bay.
In total, it increases total load capacity from 3.3 cubic metres (Standard) and 3.8 cubic metres (Long) to 3.9 cubic metres and 4.4 cubic metres respectively.

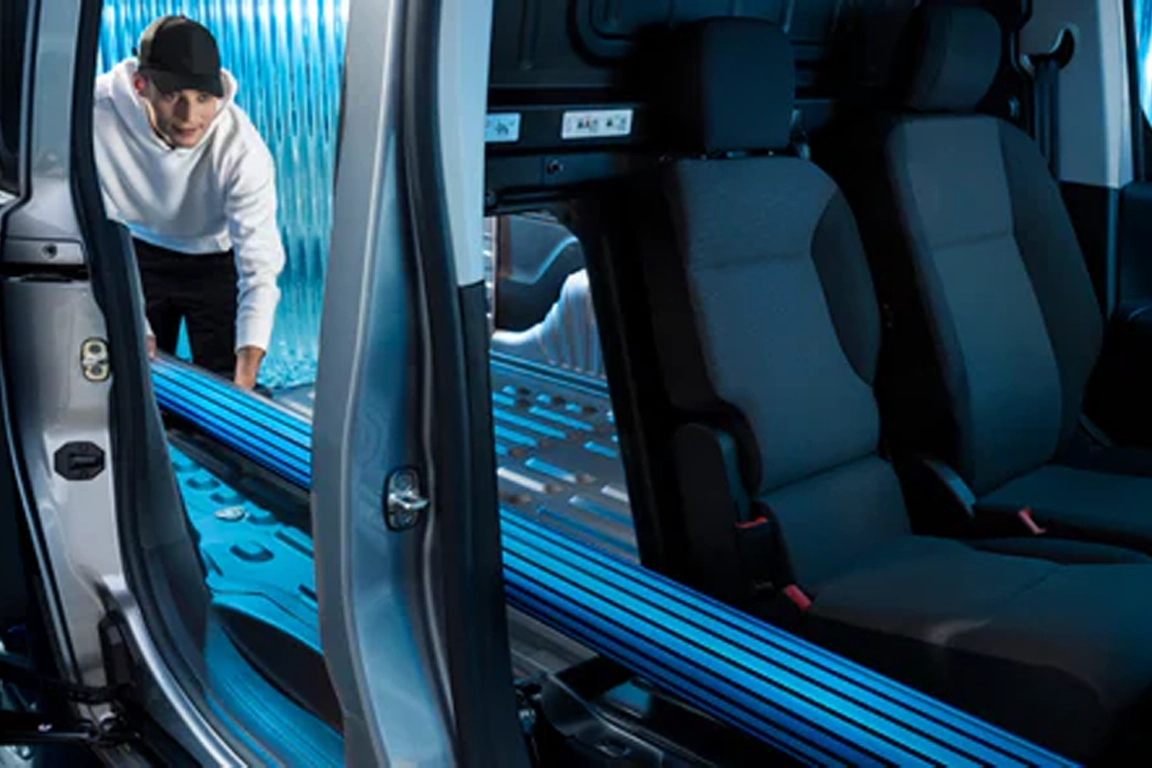

The Peugeot Partner in Professional Plus and Asphalt trim also features a dual bench seat to allow three adults to be seated in the front.
| PEUGEOT PARTNER DIMENSIONS | Standard | Long | Standard (Load Through) | Long (Load Through) | Crew Van |
| Exterior Length (mm) | 4403 | 4753 | 4403 | 4753 | 4753 |
| Exterior Height (mm) | 1796 - 1860 | 1812 - 1860 | 1796 - 1860 | 1812 - 1860 | 1812 - 1860 |
| Exterior width inc. door mirrors (mm) | 2107 | 2107 | 2107 | 2107 | 2107 |
| Wheelbase (mm) | 2785 | 2975 | 2785 | 2975 | 2975 |
| Maximum Width of Side Sliding Door (mm) | 675 | 675 | 675 | 675 | 675 |
| Maximum Width of Rear Opening (mm) | 1241 | 1241 | 1241 | 1241 | 1241 |
| Maximum Load Height of Rear Opening (mm) | 1196 | 1196 | 1196 | 1196 | 1196 |
| Maximum Load Length at Floor (mm) | 1817 | 2167 | 3090 | 3440 | 1450 |
| Maximum Load Height (mm) | 1200 | 1270 | 1200 | 1270 | 1243 |
| Maximum Load Width (mm) | 1527 | 1527 | 1527 | 1527 | 1527 |
| Width Between Wheelarches (mm) | 1229 | 1229 | 1229 | 1229 | 1229 |
| Maximum Load Volume (cu m) | 3.3 | 3.9 | 3.8 | 4.4 | 1.8 |
The Peugeot Partner has a payload of between 642 and 982kg depending on which engine/powertrain and body configuration you choose.
The entry-level 100PS 1.5HDi turbodiesel Standard is the most generous with payload, offering 982kg.
The Peugeot Partner has between 900kg and 1030kg available in maximum braked towing capacity when selected with a turbodiesel engine, both 100PS and 130PS.
The 52kWh electric model offers a maximum braked towing capacity of 750kg.
| FIAT DOBLO LOADS & WEIGHTS | 1.5 HDi Standard | 1.5 HDi Long | 1.5 HDi Crew | 52kWh Electric Standard | 52kWh Electric Long | 52kWh Electric Crew |
| Payload Capacity (kg) | 982 | 927-953 | 840 | 759-781 | 691-709 | 642 |
| Gross Vehicle Weight (kg) | 2370-2390 | 2040-2400 | 2400 | 2450-2455 | 2450 | 2455 |
| Kerbweight (kg) | 1388-1446 | 1441-1473 | 1560 | 1674-1691 | 1741-1759 | 1813 |
| Max. Braked Towing Weight (kg) | 900-1000 | 1000-1050 | 1030 | 750 | 750 | 750 |
| Peugeot Partner 1.5 Blue HDi 100 Professional Standard | Ford Transit Connect 2.0 EcoBlue 102 Trend SWB | Renault Kangoo 1.5 Blue dCi 95 Advance MWB | Citro�n Berlingo 1.5 Blue HDi 100 Enterprise M | Vauxhall Combo 1.5 Turbo D 100 Prime M | |
| Exterior Length (mm) | 4403 | 4500 | 4486 | 4403 | 4403 |
| Exterior Height (mm) | 1796 | 1856 | 1864 | 1796 | 1796 |
| Wheelbase (mm) | 2785 | 2755 | 2716 | 2785 | 2795 |
| Maximum Width of Side Sliding Door (mm) | 675 | 703 | 615 | 675 | 675 |
| Maximum Load Length at Floor (mm) | 1817 | 1797 | 1806 | 1817 | 1817 |
| Maximum Load Height (mm) | 1200 | 1272 | 1215 | 1200 | 1200 |
| Maximum Load Width (mm) | 1630 | 1628 | N/A | 1527 | 1630 |
| Width Between Wheelarches (mm) | 1229 | 1230 | N/A | 1229 | 1229 |
| Maximum Load Volume (cu m) | 3.3 | 3.1 | 3.3 | 3.3 | 3.3 |
| Payload Capacity (kg) | 982 | 740 | 677 | 982 | 982 |
| Gross Vehicle Weight (kg) | 2370 | 2220 | 2180 | 2370 | 2370 |
| Max. Braked Towing Weight (kg) | 1000 | 1500 | 1500 | 1000 | 1000 |
