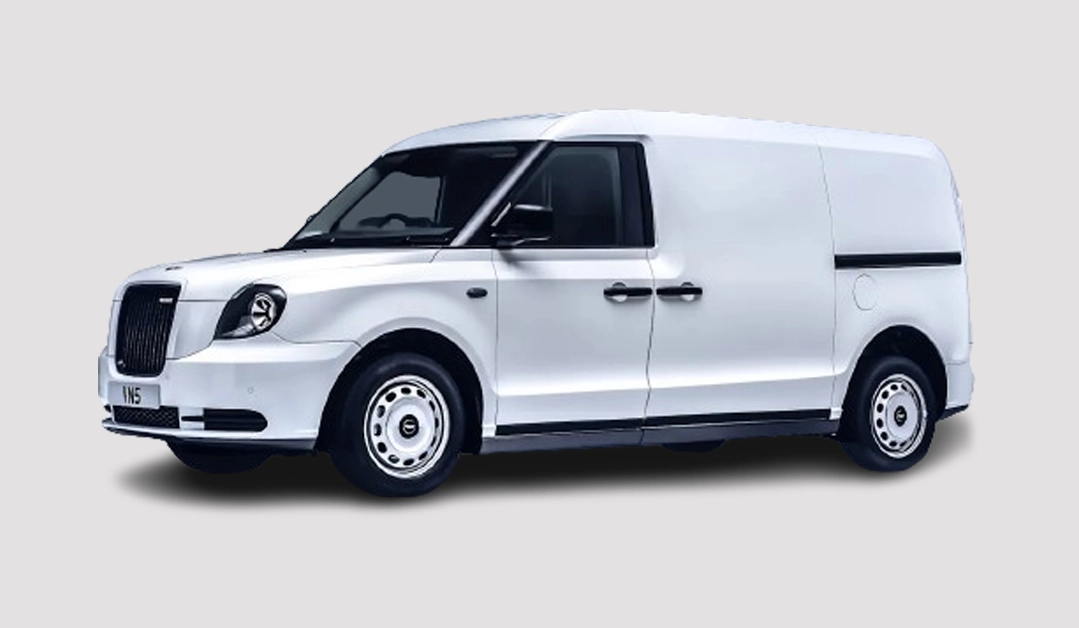

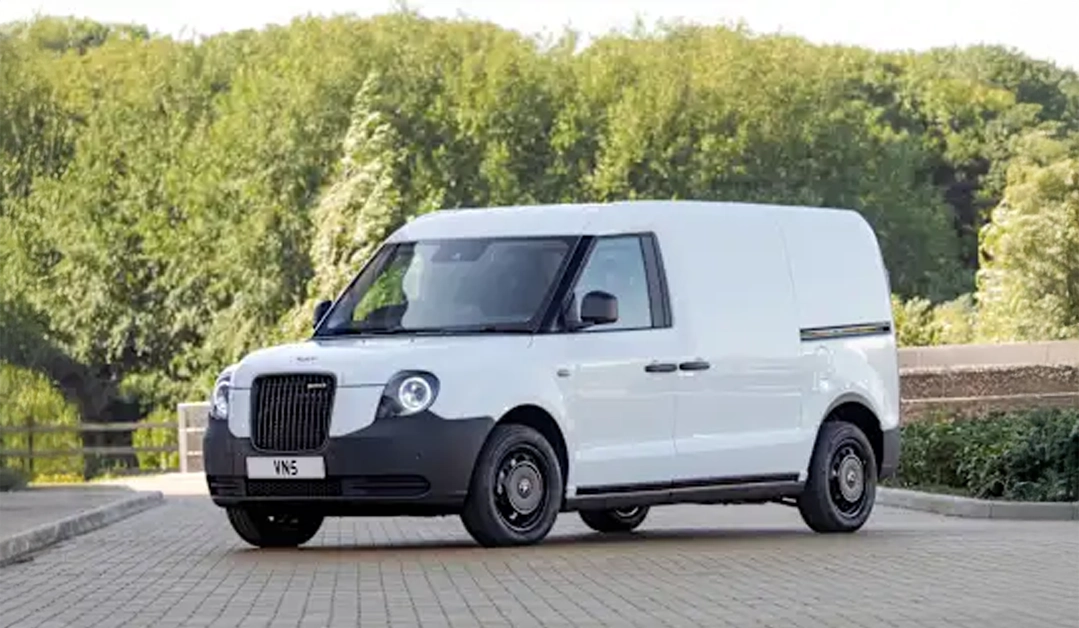

The LEVC V5 is a Medium Van available in just a single body style based around the architecture of the LEVC TX popularised as the London Black Cab.
In terms of size, the LEVC V5’s dimensions place it between a conventional L1 and L2 medium van making ideal for those seeking an extended cargo room without the overall size of a larger model.
The dimensions of the LEVC V5 measure 5233mm in overall length, which translates to a 2447mm load length at floor level and a total 5.5 cubic metres of cargo space.
| LEVC V5 DIMENSIONS | V5 |
| Exterior Length (mm) | 5233 |
| Exterior Height (mm) | 1990 |
| Exterior width excl. door mirrors (mm) | 1945 |
| Wheelbase (mm) | 3386 |
| Maximum Width of Side Sliding Door (mm) | 1128 |
| Maximum Width of Rear Opening (mm) | 1253 |
| Maximum Load Height of Rear Opening (mm) | 1272 |
| Maximum Load Length at Floor (mm) | 2447 |
| Maximum Load Height (mm) | 1373 |
| Maximum Load Width (mm) | 1574 |
| Width Between Wheelarches (mm) | 1109 |
| Maximum Load Volume (cu m) | 5.5 |
The LEVC V5 has a payload that ranges between 678 and 830kg depending on which trim level – Business, City or Ultima – is chosen.
The LEVC V5 has no permitted braked towing capacity as its gross train weight is the same as its gross vehicle weight.
| LEVC V5 LOADS, TOWING & WEIGHTS | 1.5 Petrol - 35kWh Range Extender |
| Payload Capacity (kg) | 678-830 |
| Gross Vehicle Weight (kg) | 2900 |
| Kerbweight (kg) | 2070-2222 |
| Max. Braked Towing Weight (kg) | N/A |
| Representative to Rivals | LEVC V5 1.5 Petrol 35kWh Range Extender Ultima | FIAT E-Scudo 75kWh Primo L2 | Ford E-Transit Custom 64kWh 135PS Limited L2 | Mercedes-Benz eVito 66kWh SELECT L2 |
| Exterior Length (mm) | 5233 | 5331 | 5450 | 5140 |
| Exterior Height (mm) | 1990 | 1935 | 1963 | 1932 |
| Wheelbase (mm) | 3386 | 3275 | 3500 | 2244 |
| Maximum Width of Side Sliding Door (mm) | 1128 | 935 | 1030 | 3200 |
| Maximum Load Length at Floor (mm) | 2447 | 2862 | 3002 | 2831 |
| Maximum Load Height (mm) | 1373 | 1397 | 1425 | 1392 |
| Maximum Load Width (mm) | 1574 | 1636 | 1777 | 1709 |
| Width Between Wheelarches (mm) | 1109 | 1258 | 1392 | 1270 |
| Maximum Load Volume (cu m) | 5.5 | 6.1 | 6.5 | 6.0 |
| Payload Capacity (kg) | 778 | 915 | 966 | 783 |
| Gross Vehicle Weight (kg) | 2900 | 3100 | 3225 | 3200 |
| Max. Braked Towing Weight (kg) | N/A | 1000 | 2000 | N/A |
