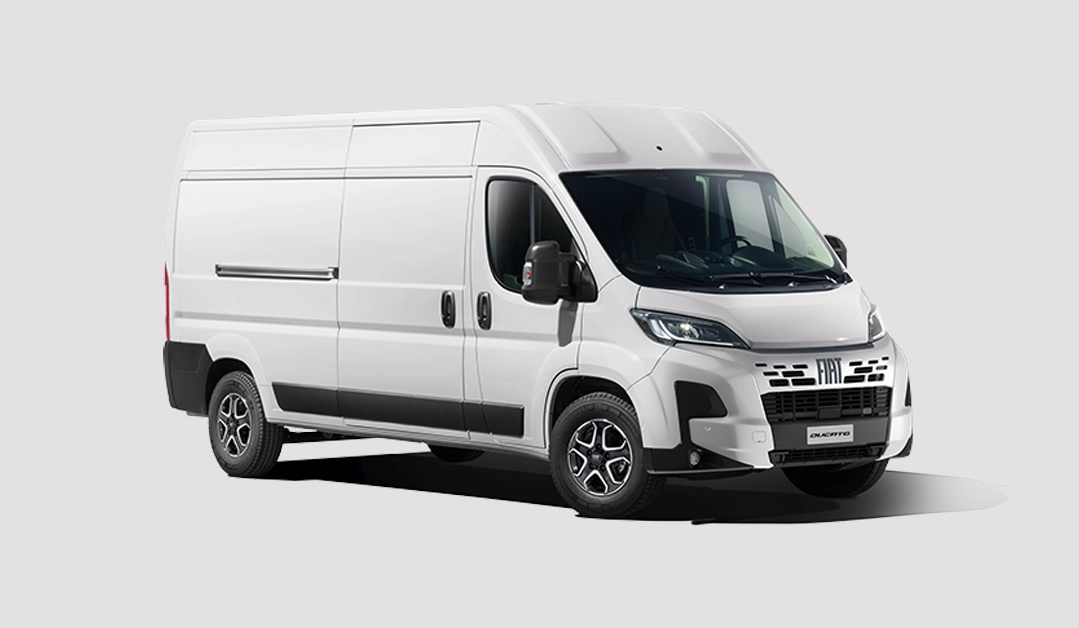

The FIAT Ducato and electric FIAT E-Ducato are Large Vans offered in six different length and height variations: L2/H1, L2/H2, L3/H2, L3/H3, L4/H2, L4/H3
The FIAT Ducato offers one of the widest choices of body sizes in the large van segment, giving buyers flexibility to choose the model that best suits their needs. Beyond the six Panel Van versions, it is also available as a Window Van, Chassis Cab, Platform Cab, Dropside Cab and Back-to-Back body style.
Load lengths range from 3120mm in the smallest L2 model, to 3705mm in the L3, and up to 4070mm in the largest L4. Heights vary too, starting at 1662mm in H1, increasing to 1932mm in H2, and topping out at 2172mm in H3.
Depending on configuration, cargo space spans from 10 cubic metres in the L2/H1 to 17 cubic metres in the L4/H3. Popular options like the L3/H2 provide 13 cubic metres, while the L4/H2 and L3/H3 each offer 15 cubic metres of capacity.
The FIAT Ducato is also notable for having an identical wheelbase length for L3 and L4 body sizes despite the latter being longer in overall length and having a larger cargo bay.
This is due to the L4 model placing its extended length behind the rear axle to improve payload capacity, rather than between the front and rear axles. This also allows for unobstructed load entry space that isn't impeded by the inside of the wheelarches.
| FIAT DUCATO DIMENSIONS | L2 H1 | L2 H2 | L3 H2 | L3 H3 | L4 H2 | L4 H3 |
| Exterior Length (mm) | 5413 | 5413 | 5998 | 5998 | 6363 | 6363 |
| Exterior Height (mm) | 2254 | 2522 | 2522 | 2760 | 2522 | 2760 |
| Exterior width excl. door mirrors (mm) | 2050 | 2050 | 2050 | 2050 | 2050 | 2050 |
| Wheelbase (mm) | 3450 | 3450 | 4035 | 4035 | 4035 | 4035 |
| Maximum Width of Side Sliding Door (mm) | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Maximum Width of Rear Opening (mm) | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Maximum Load Height of Rear Opening (mm) | 1520 | 1790 | 1790 | 2030 | 1790 | 2030 |
| Maximum Load Length at Floor (mm) | 3120 | 3120 | 3705 | 3705 | 4070 | 4070 |
| Maximum Load Height (mm) | 1662 | 1932 | 1932 | 2172 | 1932 | 2172 |
| Maximum Load Width (mm) | 1870 | 1870 | 1870 | 1870 | 1870 | 1870 |
| Width Between Wheelarches (mm) | 1422 | 1422 | 1422 | 1422 | 1422 | 1422 |
| Maximum Load Volume (cu m) | 10.0 | 11.5 | 13.0 | 15.0 | 15.0 | 17.0 |
The FIAT Ducato offers a wide range of different payload capacities depending on the engine and body size selected.
The largest model in the range - the L4 - can carry up to 2030kg using the more powerful 178bhp (180) designation of the 2.2-litre turbodiesel. The 140 turbodiesel - which is offered in L2, L3 and L4 lengths - has a payload capacity that ranges from 1235kg to 1500kg.
In electric trim, the FIAT E-Ducato offers a payload capacity of between 710kg and 1460kg depending on which length you choose.
The FIAT Ducato offers a generous towing capacity across the entire range, no matter the body style configuration or powertrain choice.
In turbodiesel guise, the Ducato can achieve a maximum 3000kg towing capacity with the largest L4 body style, while smaller L2 and L3 models range between 2500kg and 3000kg.
Using the electric powertrain, the FIAT E-Ducato has a maximum braked towing capacity of 2400kg.
| FIAT DUCATO LOADS, TOWING & WEIGHTS | 2.2 Multijet3 140PS L2 H1 | 2.2 Multijet3 140PS L2 H2 | 2.2 Multijet3 140PS L3 H2 | 2.2 Multijet3 140PS L3 H3 | 2.2 Multijet3 140PS Maxi L3 H2 |
| Payload Capacity (kg) | 1500 | 1415-1475 | 1365-1425 | 1400 | 1310 |
| Gross Vehicle Weight (kg) | 3500 | 3500 | 3500 | 3500 | 3500 |
| Kerbweight (kg) | 2000 | 2025-2085 | 2075-2135 | 2100 | 2190 |
| Max. Braked Towing Weight (kg) | 2500 | 2500 | 2500 | 2500 | 3000 |
| 110kWh Electric L3 H2 3500 | 110kWh Electric L3 H2 4250 | 110kWh Electric L3 H3 | 110kWh Electric L4 H2 | 110kWh Electric L4 H3 | |
| Payload Capacity (kg) | 710 | 1460 | 1435 | 1415 | 1385 |
| Gross Vehicle Weight (kg) | 3500 | 4250 | 4250 | 4250 | 4250 |
| Kerbweight (kg) | 2790 | 2790 | 2815 | 2835 | 2865 |
| Max. Braked Towing Weight (kg) | 2400 | 2400 | 2400 | 2400 | 2400 |
| Representative to Rivals | FIAT E-Ducato 110kWh Electric L3 H3 | Ford E-Transit Trend 89kWh 269PS L3 H3 | Maxus eDeliver 88kWh L3 H3 |
| Exterior Length (mm) | 5998 | 5981 | 5940 |
| Exterior Height (mm) | 2760 | 2650 | 2730 |
| Wheelbase (mm) | 4035 | 3750 | 3760 |
| Maximum Width of Side Sliding Door (mm) | 1250 | 1300 | 1269 |
| Maximum Load Length at Floor (mm) | 3705 | 3533 | 3413 |
| Maximum Load Height (mm) | 2172 | 2125 | 2019 |
| Maximum Load Width (mm) | 1870 | 1784 | 1800 |
| Width Between Wheelarches (mm) | 1422 | 1392 | 1366 |
| Maximum Load Volume (cu m) | 15.0 | 12.0 | 12.3 |
| Payload Capacity (kg) | 1435 | 934 | 850 |
| Gross Vehicle Weight (kg) | 4250 | 3500 | 3500 |
| Max. Braked Towing Weight (kg) | 2400 | 750 | 1400 |
